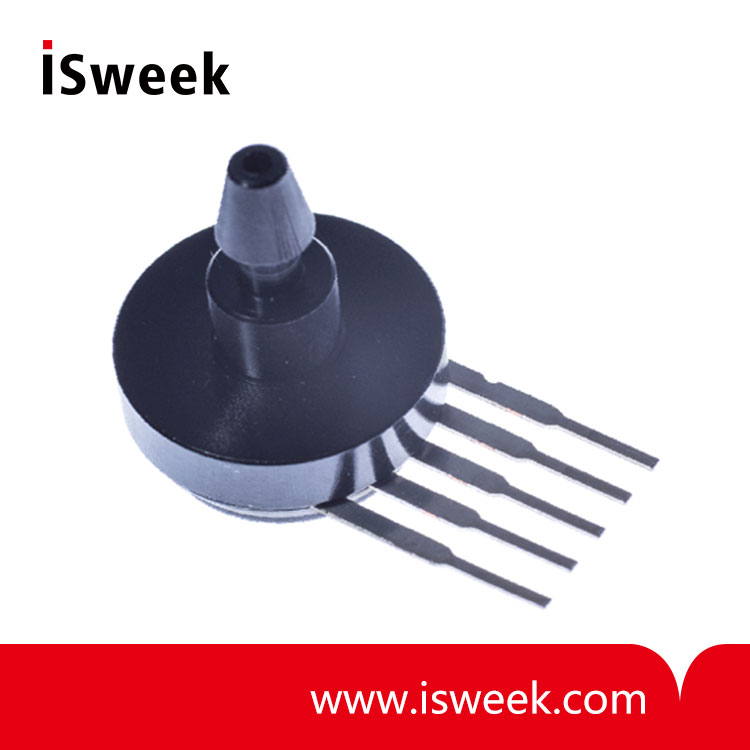

100 psi Gauge Pressure Sensor with Bridge Output - SPD100GBsil

• Excitation voltage: 0~10V
• Excitation current: 1,5mA (typ)
• Pressure range: 0~100PSI
• Span: 70 - 130mV
• Offset: ±30mV
• Linearity: ±0,1%FS (typ)
• Operating temperature: -40~125°C
• Storage temperature: -40 ~ 125°C

Model Number: SPD100GBsil
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

SPD100GBsil Pressure Sensor

100 psi Gauge Type Pressure Sensor with Bridge Output
This Smartec pressure sensor has a non-compensated bridge output. The sensor has a range of 100 PSI (FS) and the bridge output is ratiometric to the power supply voltage. Other pressure ranges (from 0.3 to 100 psi) on request.

SPD100GBsil Gauge Pressure Sensor Electrical Characteristics

Performance characteristic @ Vcc = 5 V and 25 °C

Parameter	Min	Typ	Max	Units
Excitation voltage	0	5	10	V
Excitation current		1,5	3	mA
Pressure range	0		100	PSI
Span	70	100	130	mV
Offset	-30	0	30	mV
Linearity	-0,3	±0,1	0,3	%FS
Bridge Impedance	4.0	5.0	6.0	KΩ
TC Span (0-50°C)	-27	-22	-17	%FS/100°C
TC Offset (0-50°C)	-7		7	%FS/100°C
Pressure overload			1,5 X
Operating temperature	-40		85	°C
Storage temperature	-40		125	°C
