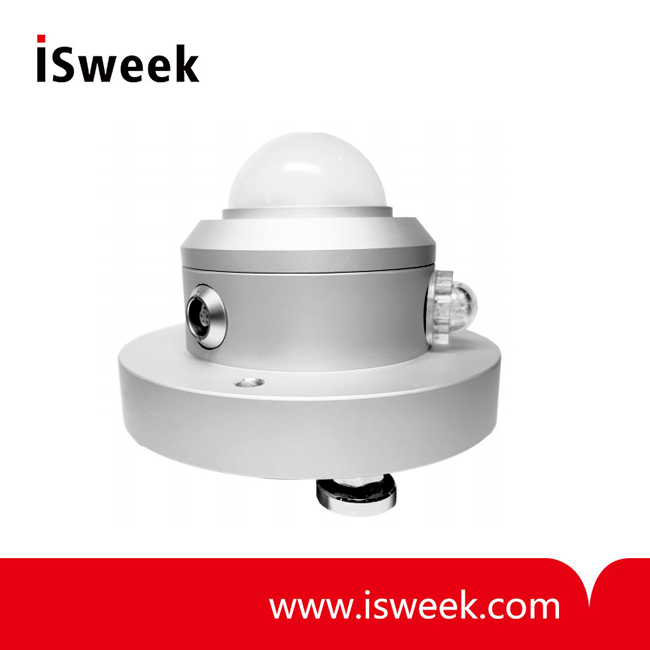

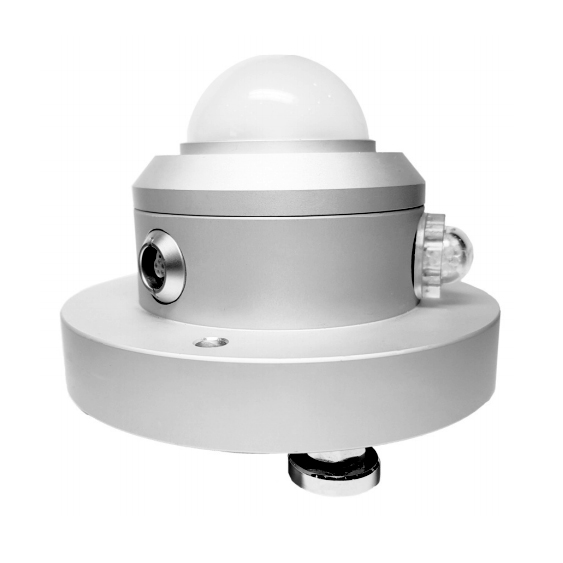

180° Wide Angle UV Sensor Probe - GUVV-T10GC-H6

- Analog Voltage Output
- No power supply needed
- 180 dgrees wide-angle
- Spectral Detection Range: 230~395nm
- Sensitivity: 2 mV/mW/cm2
- Response Time: 5ms
- Operating Temperature: -30~85°C

  • Model Number: GUVV-T10GC-H6
  • Data Sheet: Date Sheet File
Quantity:
- +
  • 180° Wide Angle UV Sensor Probe
  • 180° Wide Angle UV Sensor Probe
Mouse over image to zoom

Product Specification

GUVV-T10GC-H6 UV Sensor Probe Feature
- Analog Voltage Output
- No power supply needed
- 180 dgrees wide-angle
- Aluminum body for secure durability
- Quartz dome for high UV transmission
- Level instrument
- Replaceable desiccant cartridge
- Sun shield covers (option)
- Waterproof SUS plug & socket cable connection

GUVV-T10GC-H6 UV Sensor Probe Application
- Total UV radiometer
- UV irradiance monitoring
- Measure UV Power from Sunlight

GUVV-T10GC-H6 UV Sensor Probe Absolute Maximum Ratings

Parameter
Symbol
Value
Unit
Remark
Min.
 Typ.
 Max
Storage Temperature
Tst
-40
90 °C

Operating Temperature
Top
-30
85 °C


GUVV-T10GC-H6 UV Sensor Probe Electro-Optical Characteristics (at 25°C)

Parameter
Symbol
Value
Unit
Remark
Min.
Typ.
Max.
Spectral Detection Range
λ 230
395 nm 10% of Max.
Sensitivity
S
2
mV/mW/cm2
Maximum UV irradiance
IUV
0
100 mW/cm2
Impedance (nominal)
R

10

Field of view


180
degrees
Directional response (up to 70°)


5
%
Response Time
T
5
ms
