3 Phase, 4 Wire Reactive AC Power Transducer - CR6251

Current: AC Current
Voltage Type: AC Voltage
Frequency: AC Frequency
RMS: Average RMS
Elements: Three Element 4-Wire
Outputs: 0-5 VDC
Power: 24 Vdc Power,AC Reactive Power
Mount: DIN Rail Mount,Panel Mount

  • Model Number: CR6251
  • Data Sheet: Date Sheet File
Quantity:
- +
Inquire Now Add to cart

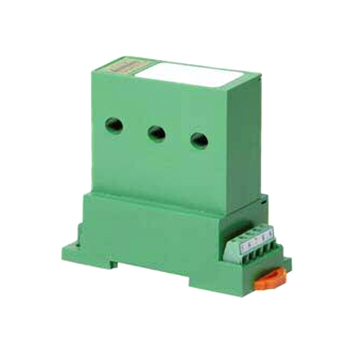

  • 3 Phase, 4 Wire Reactive AC Power Transducer
Mouse over image to zoom

Product Specification

CR6251 Reactive AC Power Transducers are designed to provide a controlled output that is proportional to the average power. These devices are specifically targeted to provide an efficient solution to most power sensing needs. Units are designed for operation in systems with sinusoidal voltage and current waveforms.

CR6251 Reactive AC Power Transducer Features
• Ranges available for any power sensing need
• Connection diagram printed on case
• Active and Reactive power sensing
• DIN Rail or Panel Mount
• 0 - 5 VDC output

CR6251 Reactive AC Power Transducer Specifications
• MTBF: Greater than 100 K hours
• Frequency Range: 50 Hz - 400 Hz
• Power Source: 12 to 24 VDC
• Output Load: 2K Ω or Greater
• Operating Temperature: 0°C to +60°C
• Thermal Drift: 500 PPM/°C
• Basic Accuracy: 0.5%
• Insulation Voltage: 2500 VDC
• Response Time: 250 ms

CR6251 Reactive AC Power Transducer Applications
• Energy Management
• Motor Efficiency
• Multi-point power sensing
• Remote power sensing over long distances

CR6251 Reactive AC Power Transducer PART NUMBERS
