3 Phase, 4 Wire Reactive AC Power Transmitter - CR6261

Current: AC Current
Voltage Type: AC Voltage
Frequency: AC Frequency
RMS: Average RMS
Elements: Three Element 4-Wire
Outputs: 4-20 mA DC
Power: 24 Vdc Power, AC Reactive Power
Mount: DIN Rail Mount, Panel Mount

  • Model Number: CR6261
  • Data Sheet: Date Sheet File
Quantity:
- +
Inquire Now Add to cart

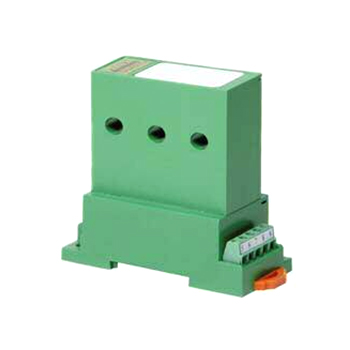

  • 3 Phase, 4 Wire Reactive AC Power Transmitter
Mouse over image to zoom

Product Specification

CR6261 Reactive AC Power Transmitters are designed to provide a controlled output that is proportional to the average being drawn from a power source. These devices are specifically targeted to provide an efficient solution to most power sensing needs.

CR6261 Reactive AC Power Transmitters Features
• Ranges available for any power sensing need
• Connection diagram printed on case
• Active and Reactive power sensing
• DIN Rail or Panel Mount
• 4-20 mA DC output

CR6261 Reactive AC Power Transmitters Specifications
• MTBF: Greater than 100 K hours
• Frequency Range: 50 Hz - 400 Hz
• Power Source: 12 to 24 VDC
• Output Load: 0 to 300 Ω
• Operating Temperature: 0°C to +60°C
• Thermal Drift: 500 PPM/°C
• Basic Accuracy: 0.5%
• Insulation Voltage: 2500 VDC
• Response Time: 250 ms

CR6261 Reactive AC Power Transmitters Applications
• Energy Management
• Motor Efficiency
• Multi-point power sensing
• Remote power sensing over long distances

CR6261 Reactive AC Power Transmitters PART NUMBERS
