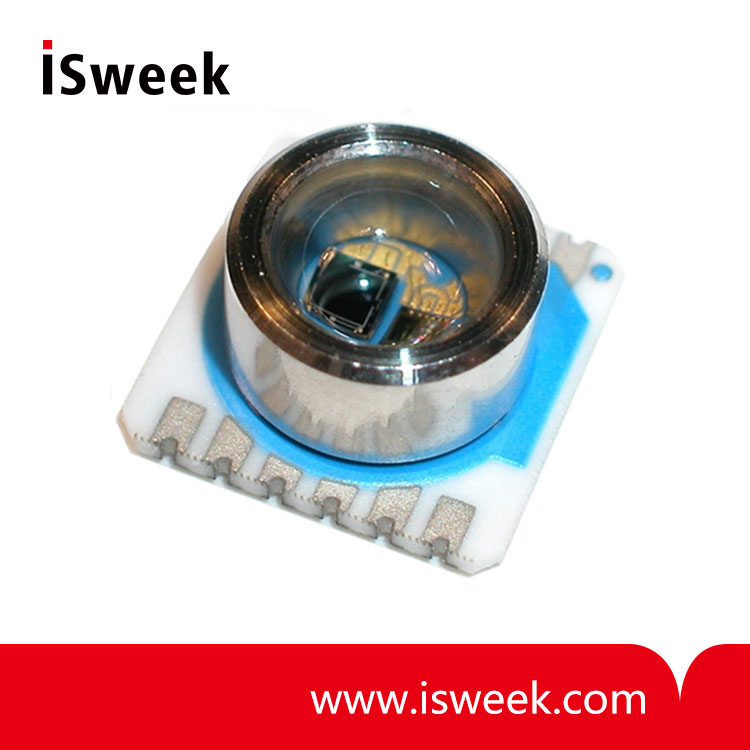

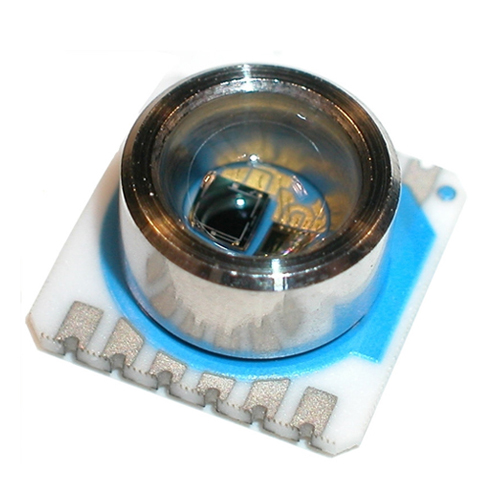

30 Bar Pressure Sensor Module - MS5535-30C

• 0 - 30 bar absolute pressure range
• ​Resolution: 3.0 mBar
• ​Supply voltage: 2.2V to 3.6V
• Response time: 35 ms
• ​Low supply current < 5uA
• ​Standy current < 0.1µA
• ​-40°C to +125°C operation temperature
• ​16 Bit ADC

  • Model Number: MS5535-30C
  • Data Sheet: Date Sheet File
Quantity:
- +
  • 30 Bar Pressure Sensor Module
  • 30 Bar Pressure Sensor Module
Mouse over image to zoom

Product Specification

MS5535-30C 30 bar Pressure Sensor Module Specifications
• 0 - 30 bar absolute pressure range
• 6 coefficients for software compensation stored on-chip
• Piezoresistive silicon micromachined sensor
• Integrated miniature pressure sensor 9 x 9 mm
• 16 Bit ADC
• 3-wire serial interface
• 1 system clock line (32.768 kHz)
• Low voltage and low power consumption

MS5535-30C 30 bar Pressure Sensor Module Description
The MS5535-30C is a high-pressure version of MS5535C pressure sensor module. It contains a precision piezoresistive pressure sensor and an ADC-Interface IC. It uses an antimagnetic polished stainless ring for sealing O-ring. It provides a 16 Bit data word from a pressure and temperature dependent voltage. Additionally the module contains 6 readable coefficients for a highly accurate software calibration of the sensor. MS5535-30C is a low power, low voltage device with automatic power down (ON/OFF) switching. A 3-wire interface is used for all communications with a microcontroller.

MS5535-30C 30 bar Pressure Sensor Module Features
• Resolution 3.0 mBar
• Supply voltage 2.2V to 3.6V
• Low supply current < 5uA
• Standy current < 0.1µA
• -40°C to +125°C operation temperature
• 16 Bit ADC resolution pressure measurement and control systems

MS5535-30C 30 bar Pressure Sensor Module Field of application
• Mobile water depth measurement systems
• Diving computers and divers watches

MS5535-30C 30 bar Pressure Sensor Module Technical Data

Sensor Performances (VDD = 3 V)
Pressure
Min
Typ
Max
Unit
Range
0
30 bar
ADC
16 bit
Resolution
3 mbar
Accuracy 0°C to +40°C, 0 to 10 bar
-65
+50 mbar
Accuracy -20°C to +85°C
0 to 10 bar
-100
+250 mbar
Response time
35
ms
Long term stability

50
mbar/yr
Temperature
Min
Typ
Max
Unit
Range
-40
+125 °C
Resolution
0.005

0.015
°C
Accuracy
-0.8
+0.8 °C

MS5535-30C 30 bar Pressure Sensor Module Device Package Outlines
