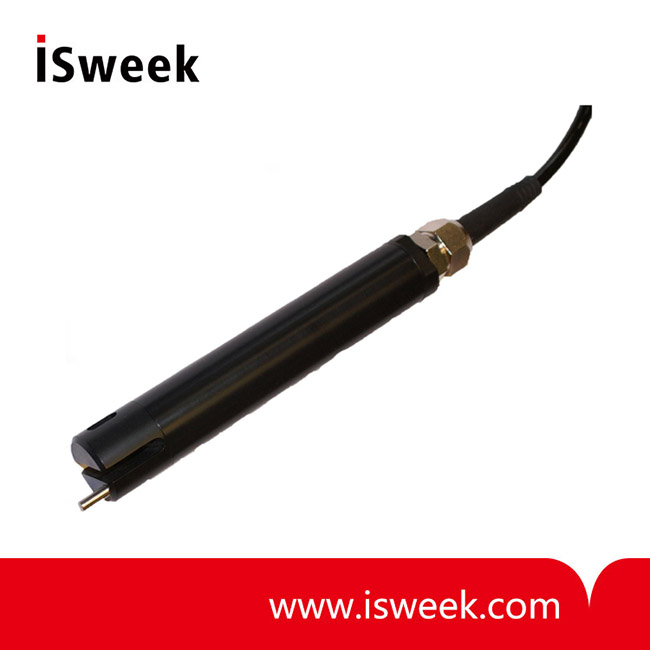

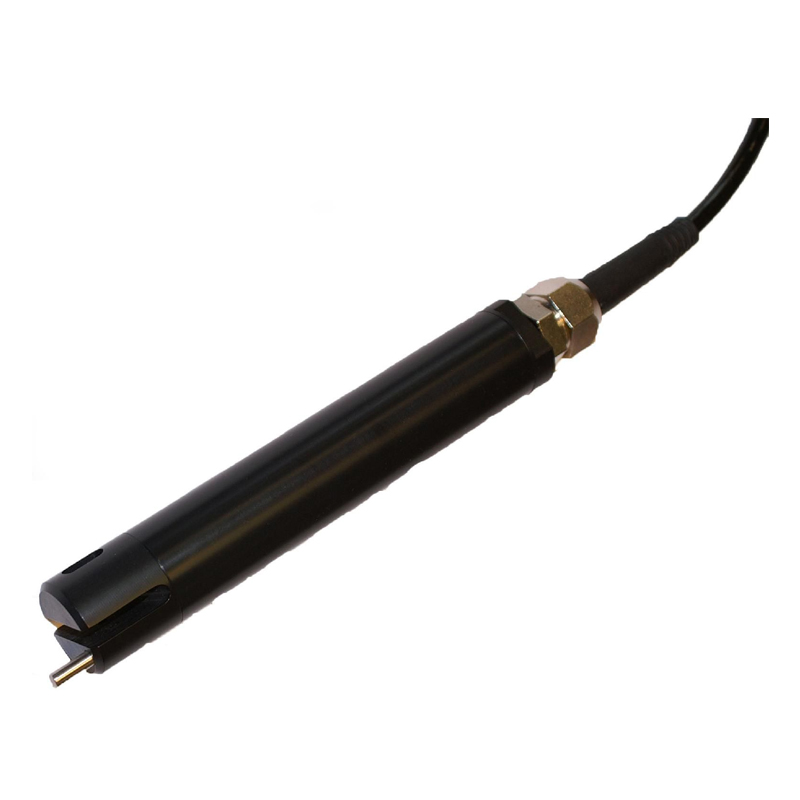

4 Electrode Conductivity Sensor - C4E

• Measured conductivity ranges: 0-200.0 μS/cm​
• Resolution: 0.01 to 1 according the range
• Accuracy: +/- 1 % of the full range
• Response time: < 5 s
• Working temperature: 0°C to 50°C​
• Signal interface: Modbus RS-485 ( option SDI-12)
• Maximum pressure: 5 bars​
• Protection: IP68

  • Model Number: C4E
  • Data Sheet: Date Sheet File
Quantity:
- +
  • 4 Electrode Conductivity Sensor
  • 4 Electrode Conductivity Sensor
Mouse over image to zoom

Product Specification

C4E Conductivity Sensor electrode technology:
The sensor works with 4 electrodes: An alternating current of constant voltage is established between a primary pair of electrodes in graphite. The secondary electrodes in platinum regulate the voltage imposed to the primary electrodes to reflect the fouling. The voltage measured between the primary electrodes is the function of the resistance and therefore a measurement of the conductivity.

C4E Conductivity Sensor Digital Technology :
The smart digital C4E sensor stores calibration history data within the sensor. This allows a 'plug and play' system without re-calibration.

C4E Conductivity Sensor Digitally optimised measurement technology
• 4 electrode conductivity sensor (2 graphite & 2 platinum)
• Smart sensor stores configuration settings and calibration history
• Range 0-200 mS/cm
• Digital sensor - Modbus RS-485
• Robust and watertight

C4E Conductivity Sensor Applications
• Industrial effluent treatment
• Urban wastewater treatment
• Surface water monitoring
• Sea water
• Drinking water

C4E Conductivity Sensor Specification

Measurement
Measurement principle
Conductivity sensor with 4 electrodes (2 graphite, 2 platinum)
Measured conductivity ranges
0-200.0 μS/cm
Resolution
0.01 to 1 according the range
Accuracy
+/- 1 % of the full range
Measured salinity range
5-60 g/Kg
Measured TDS -KCl range
0-133 000 ppm
Response time
< 5 s
Working temperature
0°C to 50°C
Temperature compensation
CTN
Operating temperature
-10°C to +60°C
Signal interface
Modbus RS-485 ( option SDI-12)
Maximum refreshing time
Max < 1 s
Sensor power-supply
5 to 12 volts
Electric consumption
Standby: 25 μA
Sensor
Dimensions
Diameter: 27 mm; Length: 177 mm
Weight
350g (sensor + 3 metres cable)
Material
PVC, stainless steel
Maximum pressure
5 bars
Connection
9 armoured connectors, polyurethane jacket, bare-wires or waterproof
Degree of protection
IB68 up to gland
Protection
IP68
