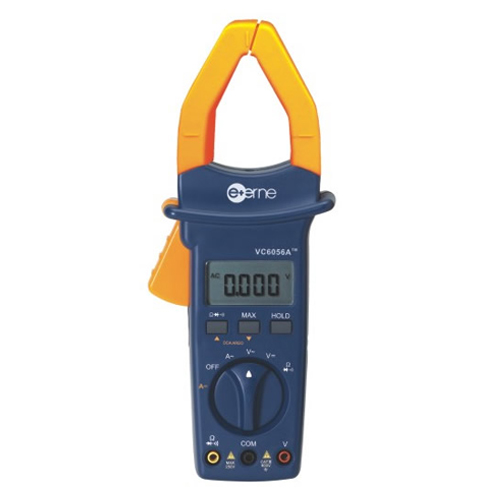

AC/DC Digital Clamp Meter - VC6056A

• 3 1/2 digital
• Data hold and Max. Hold
• Sine wave RMS display
• Circuit protection
• AC/DC Voltage, AC/DC Current
• Resistance, Diode, Continuity
• Auto shut-off
• Overload protection

  • Model Number: VC6056A
  • Data Sheet: Date Sheet File
Quantity:
- +
  • AC/DC Digital Clamp Meter
Mouse over image to zoom

Product Specification

VC6056A AC/DC Digital Clamp Meter General Features

• Adopt 3 1/2 digit auto-ranging A/D convertor
• Adopt type AAA battery and independent door
• Data hold and Max value Hold
• 200A/1500A AC/DC current range, the resolution is 0.1A
• Data hold and Max. Hold
• Sine wave RMS display
• Circuit protection
• AC/DC Voltage, AC/DC Current
• Resistance, Diode, Continuity
• Auto shut-off
• Overload protection


VC6056A AC/DC Digital Clamp Meter Specifications

Function

Range

Resolution

Accuracy

AC/ DC Current

200A/1500A

0.1A/1A

±(2.5%+5d)

AC Voltage

2V-600V

1mV

±(1.2%+3d)

DC Voltage

200mV-600V

0.1mV

±(0.8%+3d)

Resistance

200Ω-2MΩ

0.1Ω-1kΩ

±(1.0%+3d)

20MΩ

10kΩ

±(3.0%+3d)

Diode and Contiunity

Beeper <50Ω

Open voltage >1.2V
