AC/DC Hall Effect Current Transducer - CR5410

• Current: AC Current, DC Current
• Voltage Type: AC Voltage
• Frequency: AC Frequency, DC Frequency
• RMS: True RMS, Average RMS
• Elements: Single Element
• Outputs: 0 +/- 5 VDC, 0 +/- 5 VAC
• Power: 24 Vdc Power
• Hall Effect: Hall Effect
• Mount: DIN Rail Mount, Panel Mount

  • Model Number: CR5410
  • Data Sheet: Date Sheet File
Quantity:
- +
Inquire Now Add to cart

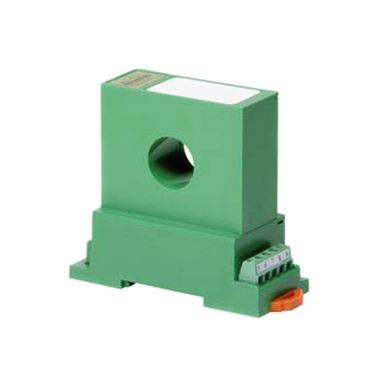

  • AC/DC Hall Effect Current Transducer
Mouse over image to zoom

Product Specification

CR5410 Series AC/DC Hall Effect Current Transducers are designed to provide a bipolar output that proportionally reflects (traces) the waveform of the input current. These devices are specifically targeted to be used in applications where multi-mode current sensing is required.

CR5410 AC/DC Hall Effect Current Transducer Features
• Non-contact current sensing
• DIN Rail or Panel Mount
• Connection diagram printed on case
• Output isolated from input

CR5410 AC/DC Hall Effect Current Transducer Specifications
• MTBF: Greater than 100 K hours
• Output: ±5 VAC/DC
• Power Source: 24 VDC
• Output Load: 2 K ohm or greater
• Insulation Voltage: 2500 VDC
• Operating Temperature: 0°C to +50°C
• Thermal Drift: 500 PPM/°C
• Basic Accuracy: 1.0%
• Response Time: 0.2mS max
• Frequency Range: DC only for DC and 20Hz to 4 KHz for AC

CR5410 AC/DC Hall Effect Current Transducer Applications
• Multi-mode ground paths carrying both AC and DC signals
• Feed back loop building block
• Inverter and multi-frequency drives

CR5410 AC/DC Hall Effect Current Transducer PART NUMBERS
