Advanced Earth Resistance Tester - MS2306/MS2307/MS2308

• Digital / Analog dual display 9999 counts
• Auto Power Off
• Clock
• AVG
• Compensation Resistance
• Alarming indicator for limit-value measurement
• Battery capacity indicator
• Display Backlight
• Setting length between resistivity testing point
• Data Storage 100 groups

  • Model Number: MS2306/MS2307/MS2308
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Advanced Earth Resistance Tester
  • Advanced Earth Resistance Tester
  • Advanced Earth Resistance Tester
Mouse over image to zoom

Product Specification

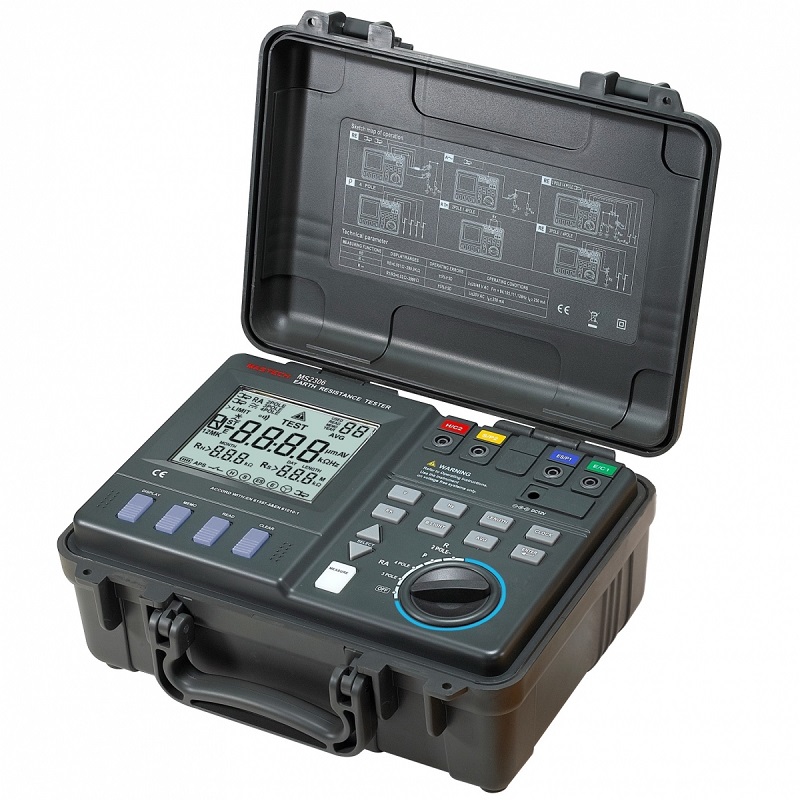

MS2306/MS2307/MS2307- Advanced Earth Resistance Tester

With the latest technology in a small-sized, robust and easy-to-use instrument, this series of earthing resistance tester is mainly used to test the earthing resistance of transformer, lightning-proof system, high-voltage power tower and telecommunication equipments, etc., providing a perfect solution for earthing-resistance test.

Advanced Earth Resistance TesteFeatures
• Digital / Analog dual display 9999 counts
• Auto Power Off
• Clock
• AVG
• Compensation Resistance
• Alarming indicator for limit-value measurement
• Battery capacity indicator
• Display Backlight
• Setting length between resistivity testing point
• Data Storage 100 groups
• USB 2.0 Interface (MS2307/MS2308)

Advanced Earth Resistance TesteGeneral Specifications

• Power supply:
  (a)6XLR14 alkaline(2#); rated voltage: 6x1.5V
  (b)Recharge Battery: NI~MH Recharge Battery, 7.2V
  (c)Charger: Input voltage: 100V~240V; Frequency: 50Hz~60Hz; Output Voltage: 12VDC 3A
• Product Size:284mmx230mmx125mm/11.2"x9.1"x4.9"
• Product Weight :  2.5kg/5.5lb
• Certificate: CE / ETL / RoHS

Advanced Earth Resistance Tester Specifications
