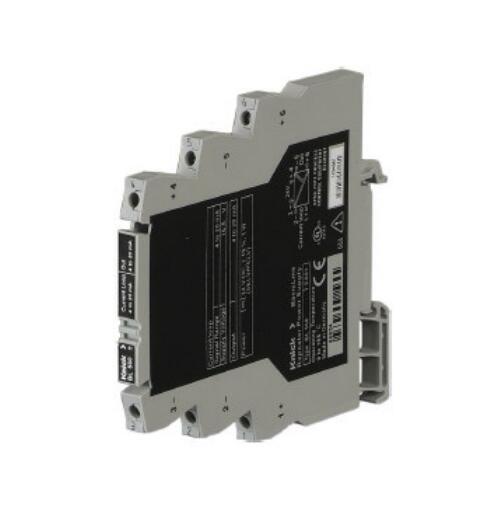

BasicLine BL 560 Repeater Power Supply - BL 560


The BL 560 repeater power supply is used for galvanically isolated supply of a 2-wire transmitter and transmission of the measured signal.

  • Model Number: BL 560
  • Data Sheet: Date Sheet File
Quantity:
- +
  • BasicLine BL 560 Repeater Power Supply
Mouse over image to zoom

Product Specification

1. General Information



The warning symbol on the device (exclamation point in triangle) mans: Observe instructions!



Warning!



Protection against electric shock



For applications with high working voltages, take measures to prevent accidental contact and make sure that there is sufficient distance or insulation between adjacent devices.



Caution



Only trained and qualified personnel should install the BasicLine BL 560 repeater power supply.



Do not connect the devices to power supply before they are professionally installed. Be sure to observe the national codes and regulations for installation and selection of cables and lines.



You must install a two-pole circuit breaker between device and mains supply (next to the device). It must be easily accessible and clearly identifiable by the operator. Mains supply must be protected by a fuse ≤ 20 A.



2. Intended Use



The BL 560 repeater power supply is used for galvanically isolated supply of a 2-wire transmitter and transmission of the measured signal.



This signal of the 2-wire transmitter is transmitted galvanically isolated to the output of the BL 560 as 4-20 mA standard signal.



Warning against misuse



Do not operate the device outside the conditions specified by the manufacturer, as this might result in hazards to operators or malfunction of the equipment.



Caution



The system installer is responsible for the safety of the system in which the device is integrated.



3. Mounting, Electrical Connection



The units are snapped onto TS 35 standard rails and laterally fixed by suitable end brackets. See dimension drawing for terminal assignments. Conductor cross-sections single wire or stranded 0.5 ... 2.5 mm2, with ferrule 0.5 ... 1.5 mm2, AWG 26-14, tightening torque 0.4 Nm.



4. Declarations and Approvals



UL Listed, File No. E340287, Standard: UL 61010-1 and CAN/CSA C22.2 No. 61010-1


5. Specifications
