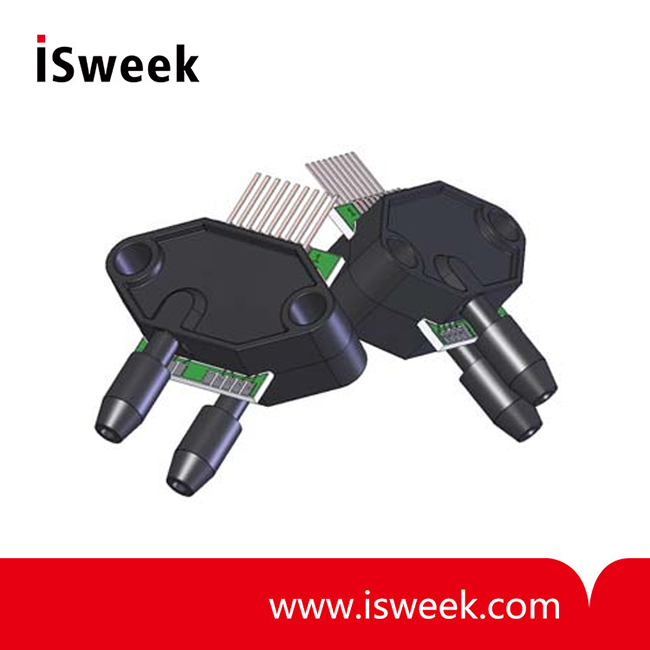

BDS Series Basic Pressure Sensor - BDS-L10D030A-N9

Product Specification

BDS Series Pressure Sensor General Description
The BDS Basic Pressure Sensor was designed with the idea of combining two sensing elements into one package. This sensor is designed to provide a precise fl ow measurement by combining a differential and absolute sensing element in the same package. By combining the differential and absolute sensing element, engineers can save cost and space in today's smaller devices.

The BASIC series pressure sensors are based upon a proprietary technology to reduce the size of the sensor and yet maintain a high level of performance. Output offset errors due to position sensitivity; packaging stress and long term drift are all signifi cantly reduced when compared to conventional silicon sensors. In addition, the sensor utilizes a silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure.

This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.

The output of the device is ratiometric to the supply voltage.

BDS Series Pressure Sensor Features
• Dual Sensing Elements (Absolute & Differential)
• Top constraint absolute sensing element for helium applications
• Parylene coating available upon request
• RoHS Compliant

BDS Series Pressure Sensor Applications
• Gas Flow Measurement

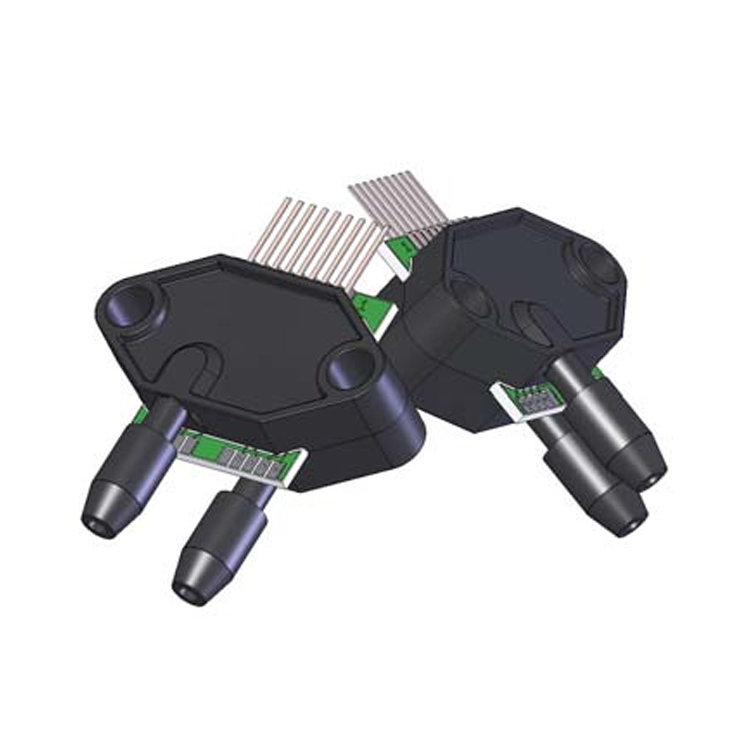

BDS Series Basic Pressure Sensor
