Carbon Dioxide (CO2) Duct Probe Transmitter - TG9xx6x

• Measurement Range: 0~2,000ppm/0~5,000ppm/0~50,000ppm
• Accuracy: ±40ppm + 3% of reading @22°C(72°F)
• Stability: <2% of full scale over the life of the sensor
• Non-linearity: <1% of full scale @22°C(72°F)
• Power supply: 24VAC/24VDC
• Consumption: 1.8 W max. ; 1.0 W avg.
• Operation temperature: 0°C~50°C (32~122°F​)
​• Operation humidity​: 0~100%RH​

  • Model Number: TG9xx6x
  • Data Sheet: Date Sheet File
Quantity:
- +

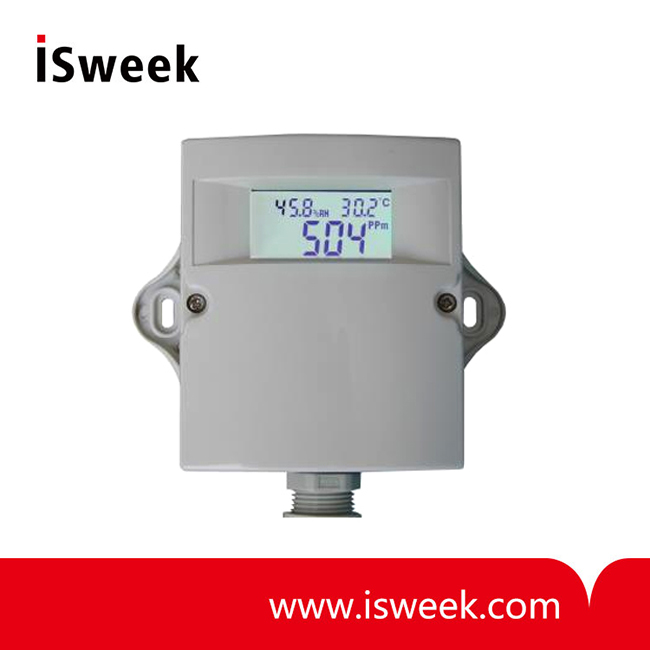

  • Carbon Dioxide (CO2) Duct Probe Transmitter
  • Carbon Dioxide (CO2) Duct Probe Transmitter
  • Carbon Dioxide (CO2) Duct Probe Transmitter
Mouse over image to zoom

Product Specification

Carbon Dioxide Duct Probe Transmitter
TG9xx6x


  • The TG9 is a CO2 transmitter designed for detection carbon dioxide in air ducts of HVAC systems.

  • The CO2 sensor uses the Non-Dispersive Infrared Technology (NDIR) with the patented self-calibration system to guarantee the long term stability and up to 15 years life time.
  • Optional  temperature and humidity detection with a high accuracy digital combined sensor, it provides a digital interface and outstanding full range linearity.
  • T he one or three analog 0-10V or 4~20mA outputs are selectable by jumpers.
  • Modbus RS485 communication interface option.
  • With or without LCD
  • Smart and skillful design for structure, with a  special demountable and replaceable filter to avoid pollution and influence of measurement.
  • Provide a split type model with an external sensor probe, 2 meter connection cable, is used in incubators or food stores etc.


TG9xx6x
Carbon Dioxide Duct Probe Transmitter Features

• Special used to real-time detect CO2 concentration in air ducts.
• NDIR infrared CO2 sensor inside with Self-Calibration and up to 15 years lifetime
• Humidity and temperature detection optional
• Digital combined temperature and humidity sensor provide the highest accuracy in full range
• White backlit LCD display option can display CO2 measurement as well as temperature and RH measurements
• Providing one or three 0~10VDC or 4~20mA analog outputs
• Modbus RS485 communication interface optional
• Smart structure and attractive housing provides you a unique operation feeling
• Simple and skillful design and installation with a demountable and replaceable filter to provides dust-proof protection
• Special a 180° rotatable fastness position for the probe can change the direction of air detection.
• Provides a split type with an external sensor probe for some special applications
• All housing and probe are IP54 class
• CE-Approval


TG9xx6x
Carbon Dioxide Duct Probe Transmitter
Typical Applications

• HVAC systems of all commercial buildings and residential houses
• Ventilation control system
• Plant factories, greenhouses
• Food stores, incubators
• Other places where needs real time detection and control CO2 concentration


TG9xx6x
Carbon Dioxide Duct Probe Transmitter
Specifications

CO2 Sensor
Non-Dispersive Infrared Detector (NDIR)
Measurement Range
0~2,000ppm / 0~5,000ppm / 0~50,000ppm (selectable in the order)
Accuracy
±40ppm + 3% of reading @22°C(72°F)
Stability
<2% of full scale over the life of the sensor
Calibration
Self-calibration system
Response Time
<5 minutes for 90% step change at low duct speed
Non-linearity
<1% of full scale @22°C(72°F)
Duct Air Velocity
0~450m/min
Pressure Dependence
0.135% of reading per mm Hg
Temperature Dependence
0.2% of full scale per ºC
Warm up time
24 hours (first time)
10 minutes (operation)
Temperature & Humidity Sensor
Temperature
Relative Humidity
Sensing element:
Band-gap-senor
Capacitive humidity sensor
Measuring range
-20°C~60°C (default)
0~60°C selectable in order
0 -100%RH
Accuracy
±0.4°C (0°C~50°C)
±3%RH (20%-80%RH)
Display resolution
0.1°C
0.1%RH
Stability
±0.1°C per year
±1%RH per year
General Data

Power supply
24VAC/24VDC
Consumption
1.8 W max. ; 1.0 W avg.
LCD display
White backlit LCD display CO2 measurement
or CO2 + temperature& humidity measurements
Analog output
1x 0~10VDC or 4~20mA output for CO2
3x 0~10VDC or 4~20mA outputs for CO2+ Temperature +RH
The voltage output or current output can be selectable by jumpers
Modbus RS485 Interface
19200bps, 15KV antistatic protection.
Operation conditions
0°C~50°C (32~122°F); 0~100%RH
Storage conditions
0~50°C (32~122°F) / 5~95%RH
Net weight
320g
IP class
IP50 for models without LCD;
IP40 for models with LCD
Standard Approva
CE-Approval


TG9xx6x Carbon Dioxide Duct Probe Transmitter Models Information

Model Name
Description
CO2 Duct Probe Transmitter
without LCD
TG9106-02/05/20
1Xanalog output for CO2 measurement.
-02: CO2 range 0~2000ppm
-05: CO2 range 0~5000ppm
-20: CO2 range 0~20,000ppm
TG9116-02/05/20
1X analog output for CO2 measurement.
Modbus RS485 interface
TG9316-02/05/20
3Xanalog outputs for CO2 measurement, and temperature & humidity
Modbus RS485 interface
CO2 Duct ProbeTransmitter
with LCD
TG9116L-02/05/20
1Xanalog output for CO2 measurement. LCD display CO2
Modbus RS485 interface
TG9316L-02/05/20
3Xanalog outputs for CO2 measurement, and temperature & humidity
LCD display CO2and temperature & humidity
Modbus RS485 interface
Split CO2 Sensor
Probe
TG5106
1X analog output for CO2 measurement. External CO2 sensor probe
with 2m cable. CO2 range: 0~50,000ppm
TG5016
Modbus RS485 interface. CO2 range: 0~50,000ppm
External CO2 sensor probe with 2m cable.
TG5116
1Xanalog output for CO2 measurement. Modbus RS485 interface.
External CO2 sensor probe with 2m cable. CO2 range: 0~50,000ppm
TG5016-TH
CO2+temperature&RH detection. Modbus RS485 interface.
CO2 range: 0~50,000ppm
External CO2 sensor probe with 2m cable.
TG5116L
LCD display CO2 measurement. 1Xanalog output.
Modbus RS485 interface.
External CO2 sensor probe with 2m cable. CO2 range: 0~50,000ppm
TG5016L-TH
Display CO2+temperature&RH. Modbus RS485 interface.
CO2 range: 0~50,000ppm
External CO2 sensor probe with 2m cable.
