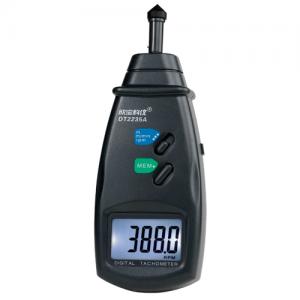

Contact Tachometer - DT2235A
5 digits 18mm (0.6") White backlight LCD
Accuracy: ±(0.05%+1 digit) of reading
Sampling Time: 0.5sec(over 120RPM)
Range Select: Auto-Ranging
Power Consumption: Approx 45mA
Time Base: 6MHz Quartz crystal
Time Base Accuracy: 10x10-6(0~50°C)
Battery: 4 x 1.5V AA Size Battery
- Model Number: DT2235A
- Quantity:
- - +
Product Specification
Contact Tachometer
Surface Speed Meter
DT2235A
5 digits 18mm (0.6") White backlight LCD
Accuracy: ±(0.05%+1 digit) of reading
Sampling Time: 0.5sec(over 120RPM)
Range Select: Auto-Ranging
Memory: Max. value, Min. value, Last value
Can store 96s data
Power Consumption: Approx 45mA
Time Base: 6MHz Quartz crystal
Time Base Accuracy: 10x10-6(0~50°C)
Measuring Range:
CONTACT TACH: 0.5~19,999RPM
SURFACE SPEED: 0.05~1,999,9m/min
Resolution:
CONTACT TACH:
0.1RPM From: (0.5~999.9RPM)
1RPM From: (over 1,000RPM)
SURFACE SPEED:
0.01m/min (0.05~99.99m/min)
0.1m/min (over 100m/min)
Battery: 4 x 1.5V AA Size Battery
