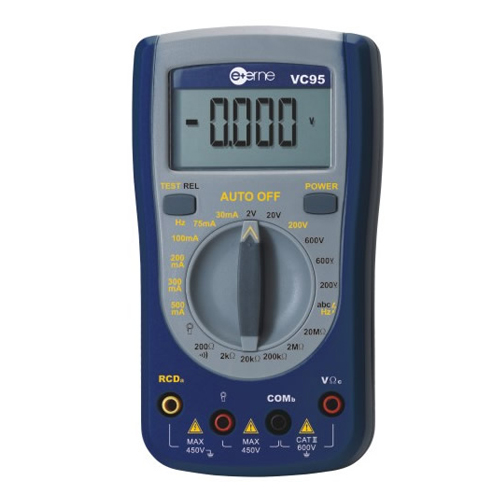

Digital Multimeter with RCD - VC95

• 3 1/2 digit display, 2000 count resolution
• Voltage/ Current measurements
• RCD check
• Resistance measurement and continuity test
• Distinguishing phase sequence
• Measuring power frequency

Model Number: VC95

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

VC95 Digital Multimeter General Feature

• 3 1/2 digit display, 2000 count resolution
• Voltage/ Current measurements
• RCD check
• Resistance measurement and continuity test
• Current selection with OC (optical coupler), an technology adopted initiatively to run the 30mA~500mA leakage-switch test.
• Distinguishing phase sequence
• Measuring power frequency
• Measures AC/DC High-current with an optional current clamp accessory
• Relative value measurement(REL)

VC95 Digital Multimeter Accessories

1 x Test lead set, 1 x Zip oxford bag, 1 x RCD tie-line, 3 AAA x batteries, 1 x user's manual

Dimension: 148 x 78 x 35mm

Weight: 250g (include batteries)

VC95 Digital Multimeter Measurement Range and Accuracy

Function	Range	Resolution	Accuracy
DC Voltage	2V/20V/200V/600V	1mV	±(1.5%+3d)
AC Voltage	200V/600V	1mV	±(1.5%+3d)
Resistance	200/2k/20k/2M/20MΩ	100mΩ	±(0.8%+3d)
Leakage switch	30/75/100/200/300/500mA	S=0.2S~0.4S	±(3%+3d)
Frequency	400Hz	0.1Hz	±(1%+1d)
Phase	ABC/ACB	Positive/Negative	50V~450V
