Digital UV Sensor - GUVB-C31SM

- Integrated GaN Sensors for UVB in a single package
- UV index measurement supported(1…>14)
- Programmable Gain and Integration time
- I2C slave interface up to 400KHz
- Power management modes
- Shutdown current : 0.8uA typical
- Supply voltage of 2.6V to 3.6V
- 2.0mm×2.3mm×1.4mm 4-pin OLGA package

  • Model Number: GUVB-C31SM
  • Data Sheet: Date Sheet File
Quantity:
- +

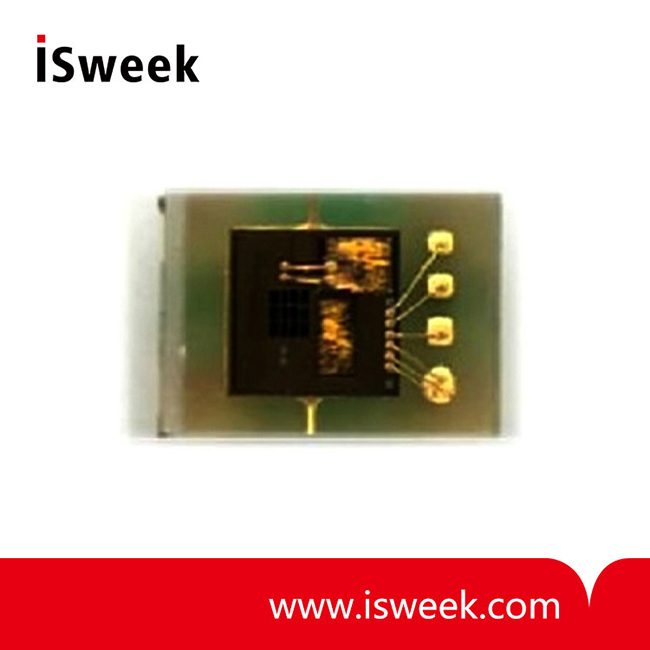

  • Digital UV Sensor

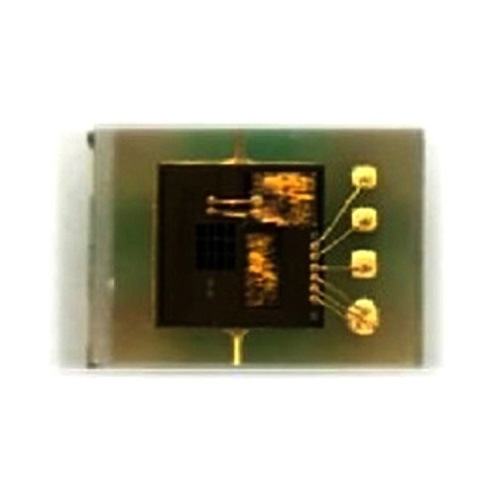

  • Digital UV Sensor
Mouse over image to zoom

Product Specification

GUVB-C31SM Digital UV Sensor Features

- Integrated GaN Sensors for UVB in a single package
- UV index measurement supported(1…>14)
- Programmable Gain and Integration time
- I2C slave interface up to 400KHz
- Power management modes
- Shutdown current : 0.8uA typical
- Supply voltage of 2.6V to 3.6V
- 2.0mm×2.3mm×1.4mm 4-pin OLGA package

GUVB-C31SM Digital UV Sensor Applications
Smartphone, Watch, Weather station, Bicycle Navigation, Gaming, Accessary

GUVB-C31SM Digital UV Sensor General Description
GUVB-C31SM supports integrated functions of an ultraviolet light sensor such that can be easily configured and used in user applications. This device has photodiodes, amplifiers, ADC, digital control logic and I2C interface circuit to measure the volumes of UVB.

The GUVB-C31SM can acquire the intensity of UVB, respectively and outputs digital count according to  the each intensity. By using power management mode properly according to the work to be done, the power consumption can be reduced.


GUVB-C31SM Digital UV Sensor General Characteristics

Package
2.0 × 2.3㎟ OLGA
Operating Temperature
-30~+85℃
Soldering Temperature
260℃(Peak Temp:10sec)

GUVB-C31SM Digital UV Sensor Electrical Characteristics
Number of output
1 Channel(UVB)
Output Resolution
16bits
UV Index range
0~14
Sensor conversion time
0.39~800ms
Configurable Gain
×1~×128
Sleep mode control
2~256 times
Power management
4modes: normal, sleep, autoshutdown, shutdown
I2C clock Frequency
Up to 400KHz
Operational current
100㎂, typical
Deep sleep current
<1㎂
Supply voltage
2.2~3.6V
