Dual Axis Inclinometer - CS-2TAS-07A

• Input Voltage: 8 ~ 26VDC
• Power current: <5mA
• Interface Type: RS485
• Baud Rate: 9600bps
• Data Output Rate: 25Hz
• Measurement Range: ±10°(±60)
• Non-Linearity: ≤±0.05° (±0.1)
• Resolution: 0.04°
• Operating Temperature: -40℃ ~ +85℃

  • Model Number: CS-2TAS-07A
  • Data Sheet: Date Sheet File
Quantity:
- +

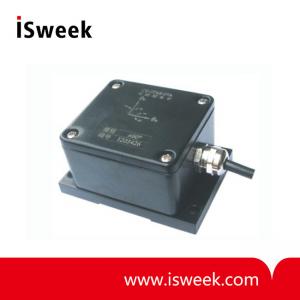

  • Dual Axis Inclinometer

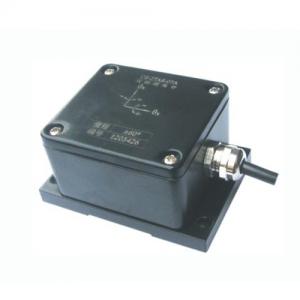

  • Dual Axis Inclinometer
Mouse over image to zoom

Product Specification

CS-2TAS-07A Dual Axis Inclinometer


CS-2TAS-07A Dual Axis Inclinometer Description
CS-2TAS-07A digital Dual Axis Inclinometer is a sensor based on MEMS technology to measure the inclination of an object relative to a horizontal surface in a static environment. The two sensitive axes respectively experience the change of pitch Angle and roll Angle. The sensor has the characteristics of fast response, small volume, low cost and high reliability. Suitable for horizontal measurement, dip Angle measurement, mechanical equipment level measurement and construction equipment tilt.


CS-2TAS-07A Dual Axis Inclinometer Specifications

Type

CS-2TAS-07A

Input Voltage

8 ~ 26VDC

Power current

<5mA

Interface Type

RS485

Baud Rate

9600bps

Data Output Rate

25Hz

Measurement Range

±10°(±60)

Non-Linearity

≤±0.05° (±0.1)

Resolution

0.04°

Bias

0.1°

Bias Drift

±0.2°

Bandwidth

5Hz

Start-up Time

<1s

compensation temperature

-40℃ ~ +85℃

Operating Temperature

-40℃ ~ +85℃

Storage temperature

-40℃ ~ +125℃

Electrostatic discharge immunity

GB/T 17626.2—1998 4 Level

RF electromagnetic field immunity

GB/T 17626.3—1998 3 Level

The pulse magnetic field immunity

GB/T 17626.9—1998 5 Level

Power frequency magnetic field immunity

GB/T 17626.8—1998 5 Level

Weight

<500g

Size

82×58×43mm
