Dynamic Pressure Sensor - 567M7

• High Sensitivity (1100 pC/psi )
• High Temperature To +500 Deg F
• Electrically Isolated
• Charge Sensitivity​: 1100 +/-100 pC/psi​
• Frequency Response​: 5.2 Hz to 5,000 Hz​
• Dynamic Range​: 0.28 x 10 -4 to 10 psi (191 dB SPL Max.)​

  • Model Number: 567M7
  • Data Sheet: Date Sheet File
Quantity:
- +
Inquire Now Add to cart

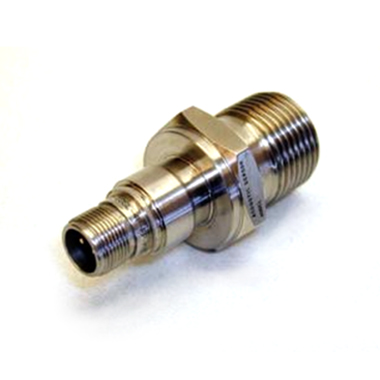

  • Dynamic Pressure Sensor

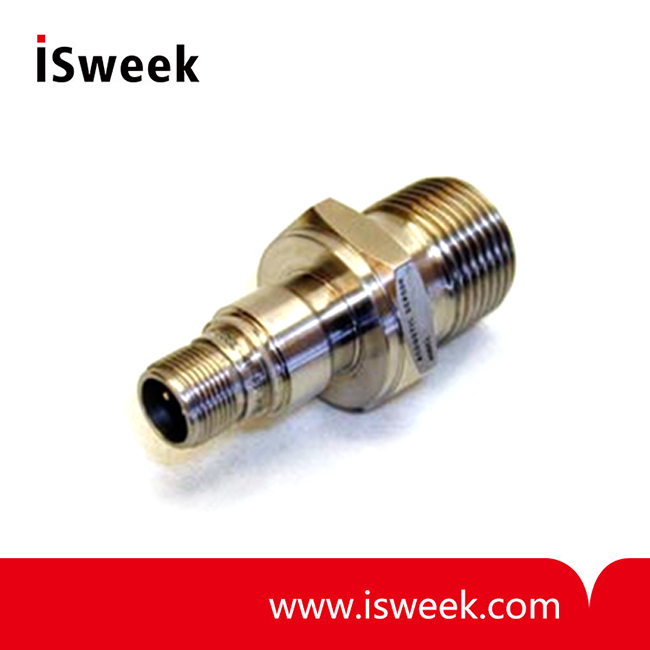

  • Dynamic Pressure Sensor
Mouse over image to zoom

Product Specification

567M7 Dynamic Pressure Sensor Description

The Model 567M7 High Intensity Acoustic Sensor (Microphone) is designed for the measurement of gas-borne sound in industrial applications. The sensor was designed for use in corrosive environments that are compatible with the type 316 stainless steel diaphragm. Model 567M7 incorporates a 2-pin MIL-C-5015 connector interface. When combined with its all-welded construction, the sensor provides a true hermetic seal.

Electrically, this device comprises sensing elements of piezoceramic material in a balanced and floating configuration to provide enhanced rejection of electrical noise associated with many industrial environments. Optimum performance is achieved when used with a true differential input amplifier.

567M7 Dynamic Pressure Sensor Features
• High Sensitivity (1100 pC/psi )
• High Temperature To +500 Deg F
• Electrically Isolated

567M7 Dynamic Pressure Sensor Specifications
Transfer / Electrical
Charge Sensitivity
 1100 +/-100 pC/psi
Frequency Response
 5.2 Hz to 5,000 Hz
Dynamic Range
 0.28 x 10-4 to 10 psi (191 dB SPL Max.)
Avg Temp Coeff of Sensitivity
 0.08% / Deg F Nominal
Transducer Capacitance
 10,000 pF +/-10%
Insulation Resistance
 100 Megohms Min., 50 VDC Test
Isolation Resistance
 100 Megohms Min., 50 VDC Test
Dielectric Strength
 550 Vrms, 60 Hz, Element to Housing
Environmental
Vibration Limit
 100 g Max. (Sine)
Shock Limit
 1,000 g Max., 0.25 mSec
Temperature Range
 -10 to +500 Deg F (-23 to +260 Deg C)
Humidity 1
 0 To 100% R.H.
Static Pressure
 550 psi Max. (Diaphragm)
Electromagnetic Sensitivity
 0.005 g (Equiv / 100 Gauss)
Physical
Configuration
 Balanced Floating Compression
Size
 1.375 In. Hex. x 2.87 In. H (35.0 mm Hex. x 53.34 mm H)
Weight
 7.0 Oz (200 Gm)
Material Body & Diaphragm
 Type 316 Stainless Steel
Electrical Interface
 2-Pin MIL-C-5015 Style Connector
Mounting
 1.125 – 12 UNF-2A Straight Thread

NOTES:
1 With Connector Mated or Protected, Unit is Hermetically Sealed.
