EZO Conductivity Circuit - EZO-EC

• Range​: 0.07 - 500,000+ μS/cm​
• Accuracy​: +/- 2%​
• Max rate​: 1 reading per sec​
• Calibration​: 1 or 2 point​
• Data protocol​: UART & I2C​
• Operating voltage​: 3.3V - 5V​
• Data format​: ASCII​
• ​Circuit dimensions​: 13.97mm x 20.16mm (0.55" x 0.79")​
• Weight​: 1.77 grams​

  • Model Number: EZO-EC
  • Data Sheet: Date Sheet File
Quantity:
- +
Inquire Now Add to cart

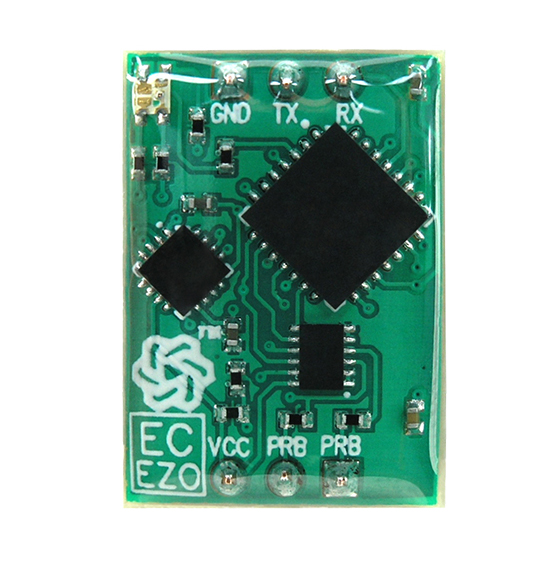

  • EZO Conductivity Circuit

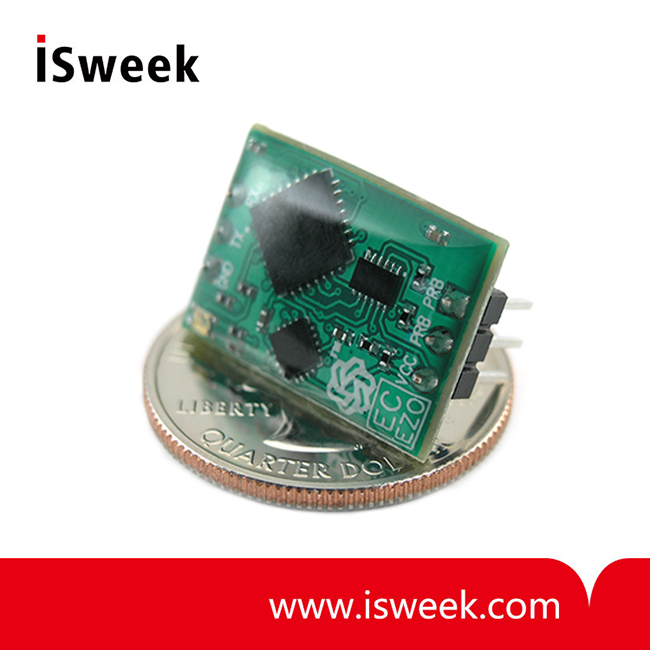

  • EZO Conductivity Circuit

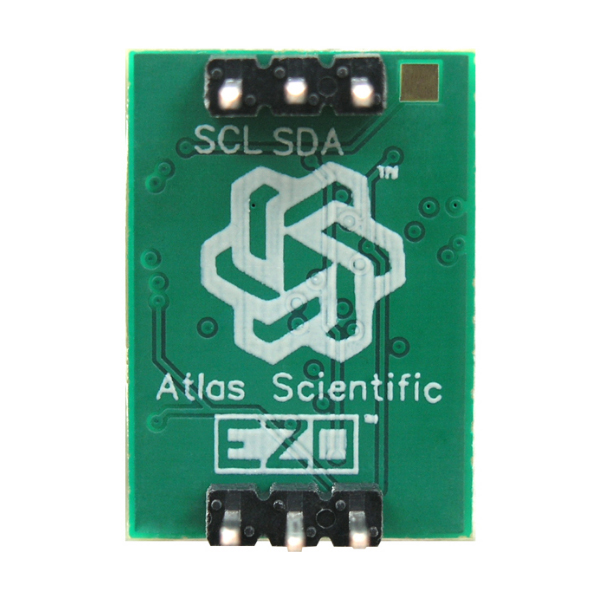

  • EZO Conductivity Circuit

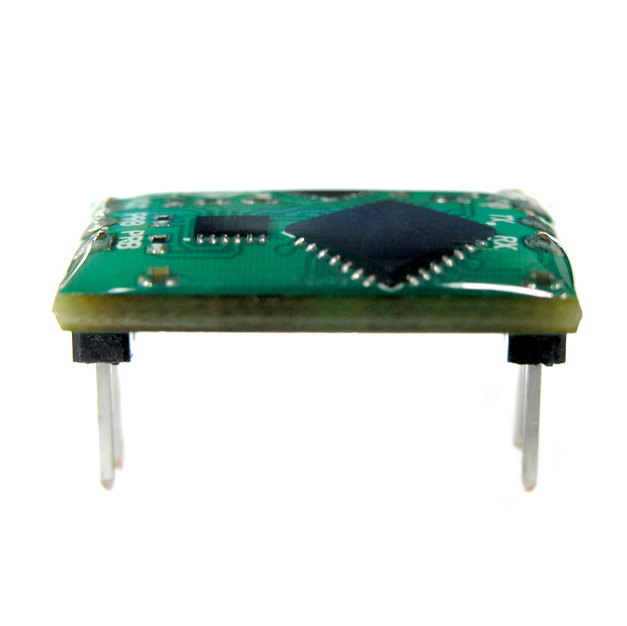

  • EZO Conductivity Circuit
  • EZO Conductivity Circuit
Mouse over image to zoom

Product Specification

EZO Conductivity Circuit

EZO-EC EZO Conductivity Circuit Operating principle
An E.C. (electrical conductivity) probe measures the electrical conductivity in a solution. It is commonly used in hydroponics, aquaculture and freshwater systems to monitor the amount of nutrients, salts or impurities in the water.

Inside the conductivity probe, two electrodes are positioned opposite from each other, an AC voltage is applied to the electrodes causing cations to move to the negatively charged electrode, while the anions move to the positively electrode. The more free electrolyte the liquid contains, the higher the electrical conductivity.

EZO-EC EZO Conductivity Circuit Dimensions


EZO-EC EZO Conductivity Circuit Power consumption


LED
 MAX
 STANDBY
 SLEEP
5V
 ON
 50 mA
 18.14 mA
 0.7 mA
OFF
 45 mA
 15.64 mA
3.3V
 ON
 35 mA
 16.85 mA
 0.4 mA
OFF
 34 mA
 15.85 mA

EZO-EC EZO Conductivity Circuit Absolute max ratings
Parameter
 MIN
 YP
 MAX
Storage temperature (EZO™ Conductivity)
 -60 °C
150 °C
Operational temperature (EZO™ Conductivity)
 -40 °C
 25 °C
 125 °C
VCC
 3.3V
 5V
 5.5V

EZO-EC EZO Conductivity Circuit Specifiations
Reads
 Conductivity = μS/cm
Total dissolved solids = ppm
Salinity = PSU
Specific gravity
(sea water only) = 1.00 - 1.300
Range
 0.07 - 500,000+ μS/cm
Accuracy
 +/- 2%
Max rate
 1 reading per sec
Supported probes
 K 0.1 - K 10 any brand
Calibration
 1 or 2 point
Temp compensation
 Yes
Data protocol
 UART & I2C
Default I2C address
 100 (0x64)
Operating voltage
 3.3V - 5V
Data format
 ASCII
Circuit dimensions
 13.97mm x 20.16mm (0.55" x 0.79")
Weight
 1.77 grams
