Flexible Level Sensor - FLD-48

• Supply voltage​: 6 ... 30 V ​DC​
• Current supply (static state)​: max. 0.6 mA​​
• Ambient temperature range​: -10 ... +60°​C​
• Protection class​: IP ​67​
• Housing material: poly​urethane​
• For limit level sensing of liquids in non-conductive plastic and glass vessels
• Suitable for plastic containers tanks, plastic tanks, cans and basins, etc..

  • Model Number: FLD-48
  • Data Sheet: Date Sheet File
Quantity:
- +

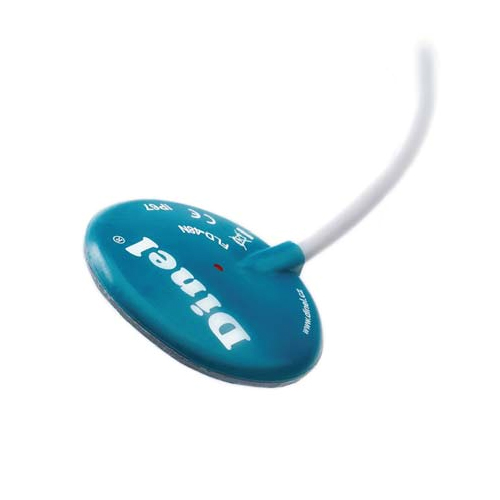

  • Flexible Level Sensor
  • Flexible Level Sensor
Mouse over image to zoom

Product Specification

Flexible level sensor FLD-48 "Meduse" is designed for detecting level of various liquids in non-conductive vessels. It is made from polyurethane fl exible housing with fl exible self adhesive layer, enabling simple attachment on fl at and mildly bent surfaces of the vessel walls. Special confi guration of the sensing surfaces and control by means of single-chip microprocessor enable reliable detection of the media and concurrent elimination of settled contamination on the internal side of the vessel. Setting of the sensor’s sensitivity is very – performed by attaching the programming wire on the positive or negative potential of the supply voltage. The sensor can be connected in the relay electrical circuit or on the control system binary inlet.

Flexible Level Sensor FLD-48 "Meduse" FEATURES
• For limit level sensing of liquids in non-conductive plastic and glass vessels
• Suitable for plastic containers tanks, plastic tanks, cans and basins, etc..
• Miniature design in flexible housing, can be located on mildly bent surfaces
• The electrode system eliminates contamination in the vessel internal side
• Simple self-adhesive fixing
• Configuration and adjustment by third "programming" wire
• LED state indication

Flexible Level Sensor FLD-48 "Meduse" TECHNICAL SPECIFICATIONS

Supply voltage
6 ... 30 V DC
Current supply (static state)
max. 0.6 mA
Switching current (min. / max.)
3.3 / 40 mA
Remanet voltage in switched on state
max. 6 V
Maximum switching frequency
2 Hz
Ambient temperature range
-10 ... +60°C
Vessel diameter for attaching the sensor
min. 200 mm
Max. thickness of the – Conductive liquids
        vessel wall         – Non-conductive liquids
8 mm
3 mm
Protection class
IP 67
Housing material
polyurethane
Connection cable type
PUR 3 x 0.14 mm2
Weight (including 2 m cable)
approx. 45 g

Flexible Level Sensor FLD-48 "Meduse" ORDER CODE
