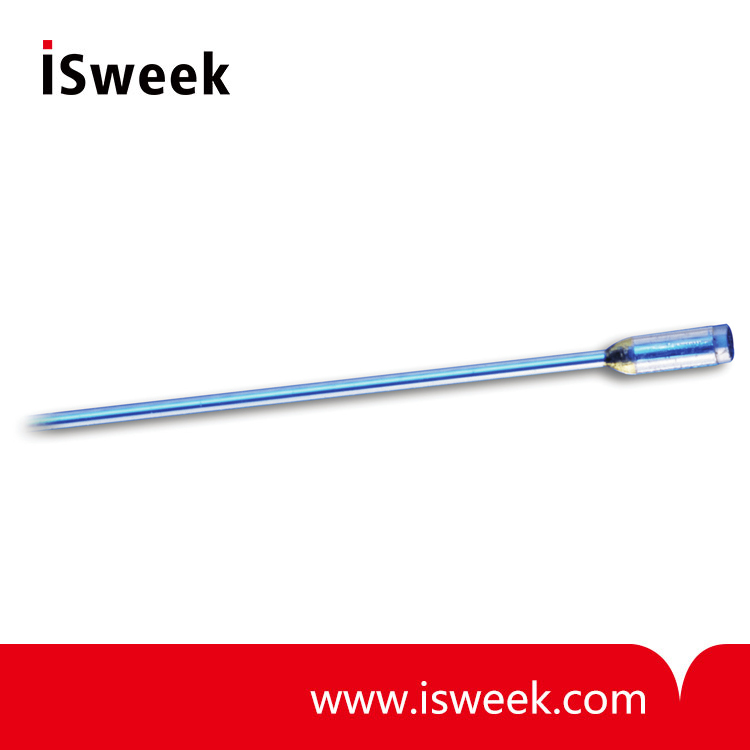

FOP-M High Pressure Fiber Optic Pressure Sensor - FOP-MHP

• Pressure range: 0-3000 psi; 0-5000 psi
• Resolution(*1): <0.5% of full scale
• Accuracy(*2): <2% of full scale
• Connector type: ST connector
• Operating temperature: -20℃ to 150℃ (-4℉ to 302℉)
•​ Designed to operate in high pressure ranges, where standard sensors fail
• Harsh and hazardous environments
• High temperature environments

  • Model Number: FOP-MHP
  • Data Sheet: Date Sheet File
Quantity:
- +
  • FOP-M High Pressure Fiber Optic Pressure Sensor
  • FOP-M High Pressure Fiber Optic Pressure Sensor
Mouse over image to zoom

Product Specification

FOP-MHP Fiber Optic Pressure Sensor

The FOP-M High Pressure is a fiber optic pressure sensor designed mainly for applications where high pressure conditions can be found such as in aero-space and defense. It is also a useful tool for general industrial applications in harsh and hazardous environments.

Designed to operate in high-pressure conditions, where standard sensors fail, the FOP-M High Pressure sensor offers immunity to EMI/RFI, a small size, reliable mea-surements under harsh conditions, high accuracy, and resistance to corrosive envi-ronments.


FOP-MHP Fiber Optic Pressure Sensor Key Features
• Designed to operate in high pressure ranges, where standard sensors fail
• Intrinsically safe
• Immune to EMI/RFI


FOP-MHP Fiber Optic Pressure Sensor Applications
• Aerospace
• Defense
• Metallurgy
• Industrial in-situ process monitoring
• High temperature
• Harsh and hazardous environments
• High temperature environments
• Oil well and natural gas pumping station
• Plastic injection molding & extrusion monitoring
• Food packaging


FOP-MHP Fiber Optic Pressure Sensor Specifications
Pressure range: 0-3000 psi; 0-5000 psi
Resolution(*1): <0.5% of full scale
Accuracy(*2): <2% of full scale
Connector type: ST connector
Operating temperature: -20℃ to 150℃ (-4℉ to 302℉)
*1. Signal conditioner dependent.
*2. Relative to atmospheric pressure.
