Frequency Transducer - Zero Crossover - CR6612

Operating Temperature: 0°C to +60°C
Frequency: AC Frequency
Outputs: 0-5 VDC
Power: 24 Vdc Power
Sensing: Zero Crossover
Mount: DIN Rail Mount, Panel Mount

  • Model Number: CR6612
  • Data Sheet: Date Sheet File
Quantity:
- +

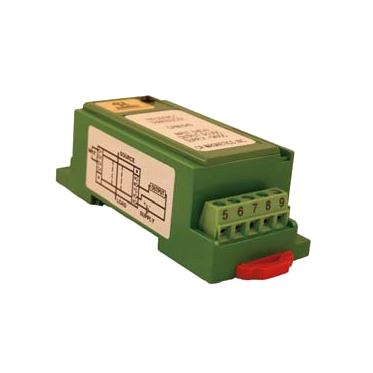

  • Frequency Transducer - Zero Crossover
Mouse over image to zoom

Product Specification

CR6612 Frequency Transducers and Transmitters are designed to give a DC output that is proportional to an input frequency value. These devices are especially suited to multi-frequency applications.

CR6612 Frequency Transducer Features
• Connection diagram printed on case
• Outputs isolated from inputs
• Ranges available for any application
• Zero crossover waveform
• DIN rail or panel mount

CR6612 Frequency Transducer Specifications
• Operating Temperature: 0°C to +60°C
• Output Load: 0-5 VDC: 2K ohm or Greater
• Supply Voltage: 24 VDC
• Insulation Voltage: 1500 VDC
• MTBF: Greater than 100 K hours
• Thermal Drift: 500 PPM/°C
• Basic Accuracy: 0.5%
• Input Voltage: 20 to 250 V Peak (other voltage ranges available)
• Response Time: 250 ms. 0-90% FS
• Frequency Range: 0 Hz to 2kHz

CR6612 Frequency Transducer Applications
• Power quality monitoring
• Applications monitor generator sets
• Multi-frequency control and monitoring
• Inverter drives and systems

CR6612 Frequency Transducer PART NUMBERS

CR6612
    -       ____   Zero crossover sensing with 0 - 5 VDC Output
____Add suffix for input range
100   -    0-100 Hz
500   -    0-500 Hz
5000 -    0-5000 Hz
other ranges available
