Gauge Pressure Sensor with Bridge Output - SPD...G

• Excitation voltage: 0~10 V
• Excitation current: 1.5 mA (typ)
• Offset: ±50 mV
• Linearity: ±0.1 %FS (typ)
• Commercial grade
• DIP version for high volume production
• Gauge or absolute pressure
• Resistive bridge technology
• Voltage or current excitation

  • Model Number: SPD...G
  • Data Sheet: Date Sheet File
Quantity:
- +

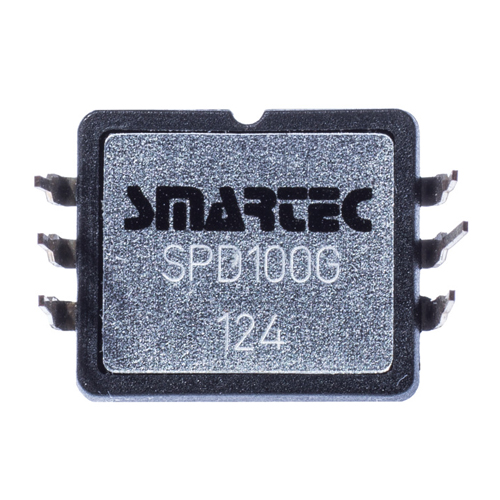

  • Gauge Pressure Sensor with Bridge Output

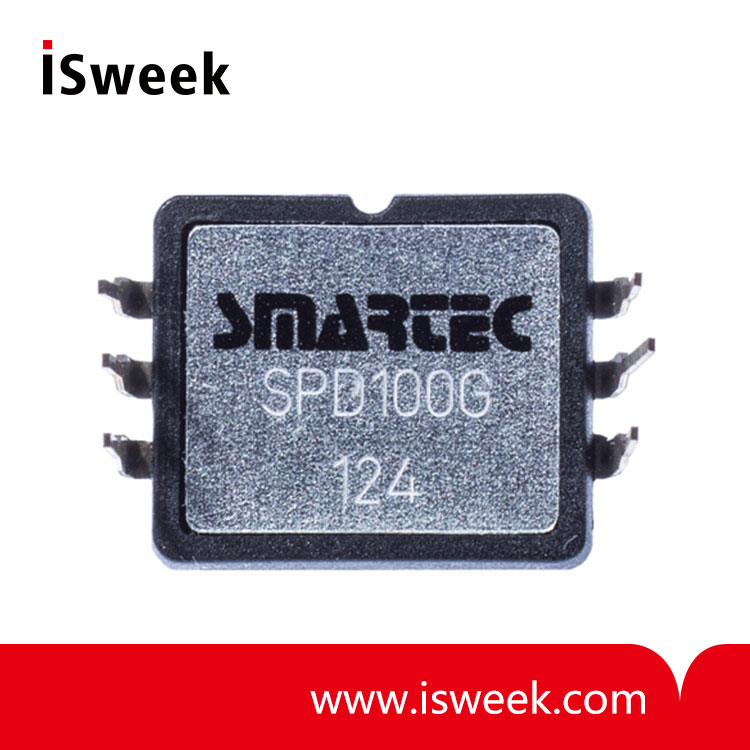

  • Gauge Pressure Sensor with Bridge Output
Mouse over image to zoom

Product Specification

SPD...G Gauge Pressure Sensor Features
• Commercial grade
• DIP version for high volume production
• Gauge or absolute pressure
• Resistive bridge technology
• Voltage or current excitation

SPD...G Gauge Pressure Sensor Applications
• Medical applications
• Blood pressure
• Portable Gauges
• Process control
• HVAC controls

SPD...G Gauge Pressure Sensor Product description
The Smart Pressure Device SPD series of pressure sensors are silicon based and encapsulated in modified plastic Dual In Line packages, to accommodate six pins for through-board printed circuit mounting.

The sensors come in two distinct types: Gauge and absolute. The gauge type merely measures the pressure with respect to the atmospheric pressure. The absolute type contains a reference vacuum chamber, which is formed on the die during manufacturing.

The output voltages of both types are proportional to the pressure that is measured.

Various pressure ranges are available. On request, other ranges and encapsulations can be supplied. Please contact our sales department for more information.

Because of its bridge resistance value, the SPD pressure sensor is especially suited for use in combination with the Universal Transducer Interface (UTI03), which gives an easy and very accurate interface to a digital environment.

SPD...G Gauge Pressure Sensor Performance Characteristic

(Measured @5V excitation and 25 °C.)

Parameter

 Min

 Typ

 Max

Units.

Excitation voltage

0

5

10

V

Excitation current



1.5

3

mA

Offset

-50

0

50

mV

Linearity

-0.3

±0.1

0.3

%FS

Bridge Impedance

2.7

3.3

4.0

KΩ

TC Span (0-50°C)

-27

-22

-17

%FS/100°C

TC Offset (0-50°C)

-7



7

%FS/100°C

TC bridge resistance

23

28

33

%FS/100°C

Hysteresis





0.15

% of range

Repeatability 1)



±0.2

±0.5

FSO

Response time (10-90%)



1



ms

Pressure overload





1.35

Pa (*105)

Operating temperature

-20



85

°C

Storage temperature

-30



125

°C


The below stated differences yield for the SPD005G and SPD100G only

For SPD005G and SPD100G only

Offset

-20

 0

20

mV

Bridge Impedance

4

5

6

KΩ


1) measured after 1,000 temp. cycles 0 - 70 °C, 106 pressure cycles (10-90% FS)

 Type

Range(*105 Pa)

Min

Typ(FS)

 Max

 Unit

015A

0 - 1 abs

90

130

175

mV

005G

0 - 0.350

40

60

80

mV

015G

0 - 1

100

140

175

mV

030G

0 - 2

120

160

200

mV

100G

0 - 6.5

70

100

130

mV


1 Pa = 0.145* 10-3 psi  or 1 PSI = 6.89476*103  Pa
1 Bar = 105 Pa = 105 N/m2


SPD...G Gauge Pressure Sensor Ordering information

Part no.

 Pressure range

SPD005G

 0- 0.35 105 Pa (Gauge)

SPD015G

 0- 1.0   105 Pa -

SPD030G

 0- 2.0   105 Pa -

SPD100G

 0- 6.5   105 Pa -



SPD015A

 0- 1.0   105 Pa (Absolute, SOIC6)

Other pressure ranges on request
