High-temperatur Gage Pressure Microelectronic Transducer 0~160MPa, -40℃~+300℃ - MIDA-TG-52

wide pressure range(0~160MPa)
wide temperature range (-40℃~+300℃), low temperature error
high accuracy, high stability
cost-effective
Accuracy: ≤ ±0,25%; ≤ ±0,5%
Supply voltage: 5 - 15 V

  • Model Number: MIDA-TG-52
Quantity:
- +
Inquire Now Add to cart
  • High-temperatur Gage Pressure Microelectronic Transducer 0~160MPa, -40℃~+300℃
Mouse over image to zoom

Product Specification

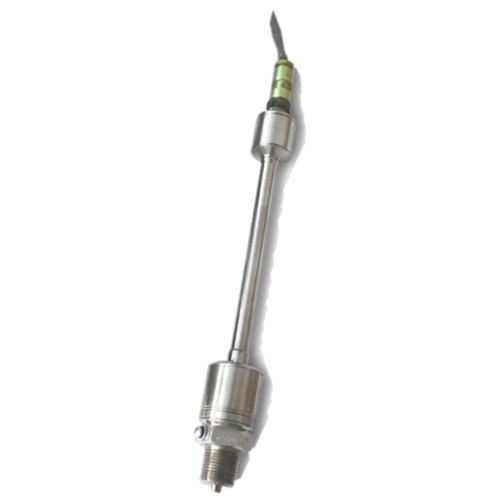

High-temperatur Gage Pressure Microelectronic Transducer 0~160MPa, -40℃~+300℃

MIDA-TG-52


Features:

wide pressure range(0~160MPa)
wide temperature range  (-40℃~+300℃), low temperature error
high accuracy, high stability
cost-effective



Application:

specially for electric submersible pump and oilfield downhole pressure gauge

industrial process pressure control

aviation and aerospace fields

navigation and shipbuilding industry

petroleum and chemical industry

power plant and nuclear power plants

electrical submersible pump corollary equipment



Specification

Applicationsy Industrial instrumentation & process control systems
Measured medium Fluids and gases compatible with titanium alloys and stainless steels
Standard ranges, MPa 0-0,01 … - 0-160
Accuracy (comb. L.H.R),no more than, ±% 0,25; 0,5
Zero output, ±mV/1 V of supply voltage 0,1 (for 0,25%); 0,2 (for 0,5%)
Output range, mV / V 5,0+0,2 (3,0+0,2 for 0,01 MPa; 10+0,2 by special request)
Operating temperature range, ℃ -40 ... +300
Compensated temperature range, ℃ +10…+100; +50…+150;
+100…+200; +150…+250;
+200…+300
Additional error within compensated temperature range,
no more than, %:
of zero output
of output range
 		1,5 (for 0,25%); 2,5 (for 0,5%)
1,5 (for 0,25%); 2,5 (for 0,5%)
Supply voltage, V 5 - 15
Input and output resistance, kOhm Rвх ≥4; Rвых ≤7
Overload, no more than 1,5Рnom (<40 MPa), и 1,25Pnom(>40 MPa)
Insulation resistance(at temperature of 25 ℃), not less than
 		100 MOhm at 100 V


Overall and mounting dimensions

Temperature at A-zone is up to plus 300 ℃
Temperature at B-zone is up to plus 85℃

Type
 Pnom, MPa
 L, mm (max)
 L1 , mm (max)
 A, mm (max)
MIDA-TG-52
With cable (C)
0,04; 0,06
 231 (M20)
221 (M12)
 69 (M20)
59 (M12)
 137 (M20)
127 (M12)
 2;
1; 2
From 0,1 up to 160 (M20)
From 0,1 up to 25 (M12)
 233 (M20)
223 (M12)
 72 (M20)
62 (M12)
 140 (M20)
130 (M12)
 3;
1; 3

Type
 Pnom, MPa
 L, mm (max)
 L1 , mm (max)
 A, mm (max)
MIDA-TG-52
With
plug/socket (P)
 0,04; 0,06
 240 (M20)
230 (M12)
 69 (M20)
59 (M12)
 137 (M20)
127 (M12)
 2; 4
1; 2; 4
From 0,1 up to 160 (M20)
From 0,1 up to 25 (M12)
 242 (M20)
232 (M12)
 72 (M20)
62 (M12)
 140 (M20)
130 (M12
 3; 4
1; 3; 4
