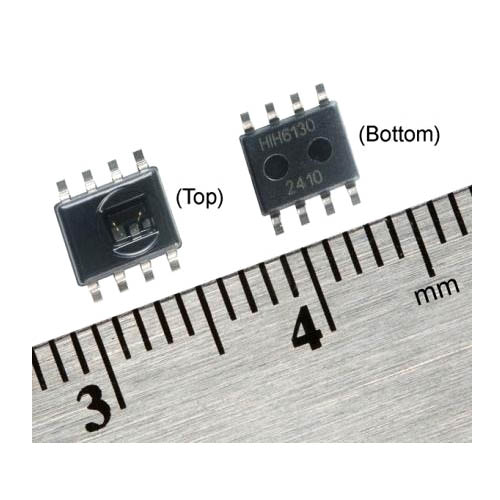

Honeywell HumidIcon™ Digital Humidity/Temperature Sensors - HIH-6130/6131 Series

● Industry-leading Total Error Band (TEB) (±5 %RH)
● Industry-leading long term stability (1.2 %RH over five years)
● Industry-leading reliability
● Lowest total cost solution
● True, temperature-compensated digital I2C output
● Energy efficient
● Ultra-small package

  • Model Number: HIH-6130/6131 Series
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Honeywell HumidIcon™ Digital Humidity/Temperature Sensors
Mouse over image to zoom

Product Specification

Honeywell HumidIcon™ Digital Humidity/Temperature Sensors - HIH-6130/6131 Series



Description
Honeywell HumidIcon™ Digital Humidity/Temperature Sensors: HIH-6130/6131 Series, is a digital output-type relative humidity (RH) and temperature sensor combined in the same package. These devices offer several competitive advantages,including:
● Industry-leading Total Error Band
● Industry-leading stability
● Industry-leading reliability
● Lowest total cost solution
● True temperature-compensated digital I2C output
● Energy efficiency
● Ultra-small package



Competitive Differentiator
● Industry-leading Total Error Band (TEB) (±5 %RH)
● Industry-leading long term stability (1.2 %RH over five years)
● Industry-leading reliability
● Lowest total cost solution
● True, temperature-compensated digital  I2C output
● Energy efficient
● Ultra-small package



Features and Benefits
Wide operating temperature range of -25 ℃ to 85 ℃ [-13 ℉ to 185 ℉] allows for use in many applications
Optional one or two %RH level alarm outputs provide the user the ability to monitor whether the RH level has exceeded or fallen below pre-determined and critical levels within the application
Multi-function ASIC provides flexibility within the application by lowering or eliminating the risk and cost of OEM calibration
Industry-standard package provides easy design-in
RoHS and WEEE compliant; halogen-free
Two configurations increase flexibility of use: HIH-6130: no filter, non-condensing; HIH-6131: hydrophobic filter and condensation-resistant allow use in many condensing environments



Potential Applications
HVAC/R: May be used to provide precision RH and temperature measurement in air conditioning/air movement systems, enthalpy sensing, thermostats, humidifiers/de-humidifiers, and humidistats to maintain occupant comfort and ideal storage humidity/temperature while achieving low energy consumption, supporting system accuracy and warranty requirements, maximizing system uptime, and improving overall system quality.
Respiratory therapy: May be used to provide precision RH and temperature measurement in sleep apnea machines and ventilators, enhancing patient comfort, safety and treatment effectiveness with warm and humidified air.
Incubators/microenvironments: May be used to provide optimal temperature and RH levels to support critical processes and experiments, enhancing process efficiency with desired climate conditions.
Air compressors: May be used to provide precision RH measurement in compressed air lines, allowing the system to remove any condensation; dry compressed air is critical for customer process control measurement.
Weather stations: May be used to provide precision RH and temperature measurement in ground-based and air-born weather stations, allowing real time and highly accurate monitoring and reporting of actual weather conditions.
Telecom cabinets: May be used to provide precision RH and temperature measurement in the telecom cabinet HVAC system; maintaining proper temperature and humidity levels in the cabinet provides maximum system uptime and performance.
