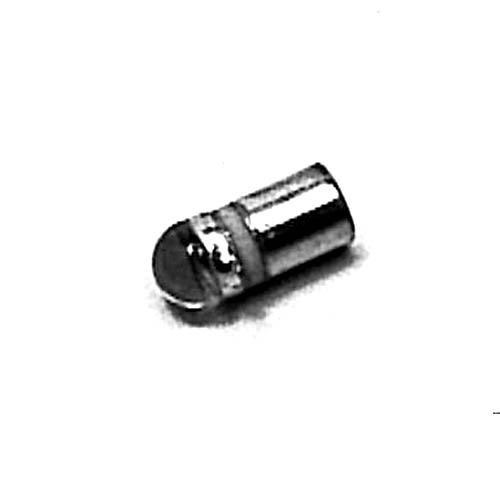

Honeywell Silicon Phototransistor - SD2440

● Miniature, hermetically sealed, pill style, metal can package
● 48°acceptance angle
● Wide operating temperature range(-55 ℃ to +125 ℃)
● Ideal for direct mounting to printed circuit boards
● Wide sensitivity ranges

Model Number: SD2440
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Honeywell Silicon Phototransistor - SD2440

Description
The SD2440 is an NPN silicon phototransistor mounted in a hermetically sealed glass lensed metal can package. This package directly mounts in a double sided PC board.

Features
● Miniature, hermetically sealed, pill style, metal can package
● 48°acceptance angle
● Wide operating temperature range(-55 ℃ to +125 ℃)
● Ideal for direct mounting to printed circuit boards
● Wide sensitivity ranges
● Mechanically and spectrally matched to SE2460 and SE2470 infrared emitting diodes

ABSOLUTE MAXIMUM RATINGS (25 ℃ Free-Air Temperature unless otherwise noted)
Collector-Emitter Voltage: 30 V
Emitter-Collector Voltage: 5 V
Power Dissipation: 125 mW
Operating Temperature Range: -55 ℃ to 125 ℃
Storage Temperature Range: -65 ℃ to 150 ℃
Soldering Temperature (10 sec): 260 ℃
