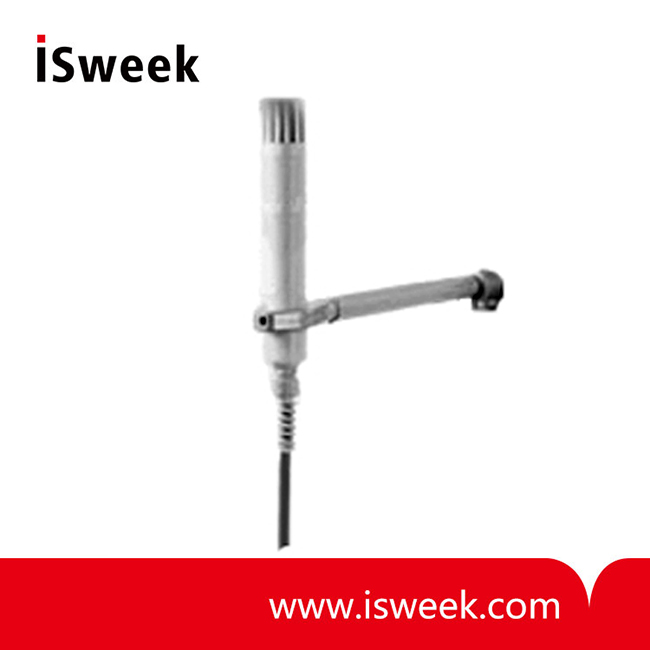

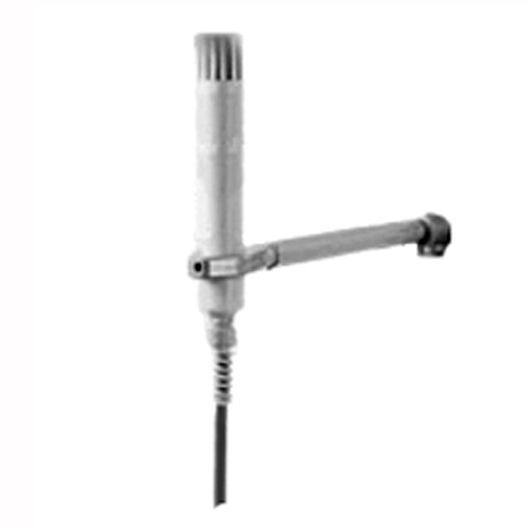

Indoor Thermoigrometric Sensor - UTAI

• Temperature typical range: -40 ~ +80°C
• Temperature resolution: 0.015°C
• Humidity typical range: 0 ~ 100%Rh
• Humidity resolution: 0.1%
• Working conditions: -40 ~ +80°C
• Power supply: 10 - 28Vdc
• Current consumption: < 0.5W (UTAI-B)
• Weight: <100g

Model Number: UTAI
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

UTAI Indoor Thermoigrometric Sensor DESCRIPTION
Sensor made of plastic material for the measurement of indoor temperature and humidity. Its small size allows use in hidden conditions.
Temperature: RTD sensing element 1/3DIN Pt100, connection with a four-wire.
Relative Humidity: Sensor for air relative humidity measurement made of a thin film that changes the capacity in linear mode with the air humidity.
Electrical signal output in current or voltage (4 to 20mA or 0 - 1Vdc) or RS485/ModBus for applications

UTAI Indoor Thermoigrometric Sensor Highlihted specs
• Accurated and reliable Air Humidity & Temperature Sensor
• Very limited dimensions and weight
• Measure with high precision capacity and RTD Pt100
• According to CE norms

UTAI Indoor Thermoigrometric Sensor Technical Data

Temperature
Temperature typical range	-40 ~ +80°C
Temperature resolution	0.015°C
Temperature accuracy	DIN 43760 1/3DIN (±0.1°C @ 0°C)
Temperature response time	< 60 s
Type of transducer	1/3DIN platinum resistance Pt100 (100Ω @ 0°C)
Humidity
Humidity typical range	0 ~ 100%Rh
Humidity resolution	0.1%
Humidity accuracy	± 2% f.s.
Humidity response time	< 100sec (10÷80%RH)
Humidity measure type of transducer	capacitive
Signal out	N: 0 - 1 Vdc(Rh) & Pt100 (T); A: 0 - 1 Vdc(Rh +T); B: 4 - 20mA (Rh+T) ; C: RS485 /ModBus
Working conditions	-40 ~ +80°C
Power supply	10 - 28Vdc
Current consumption	< 0.5W (UTAI-B)
Weight	<100g

UTAI Indoor Thermoigrometric Sensor Order Form

Sensor	Indoor Temperature and Relative Humidity Sensor		UTAI	A B C N	05 10 xx	SSM
Output	Temperature 0 - 1Vdc 4 - 20mA RS485 / Modbus natural : Pt100	Humidity 0 - 1Vdc 4 - 20mA RS485 / Modbus 0 - 1Vdc
Accessories	CS05 – Cable 5m sensor-datalogger CS10 – Cable 10m sensor-datalogger CSxx – Cable xx* m length sensor – datalogger
	Arm support for stylus sensors for wall mounting
