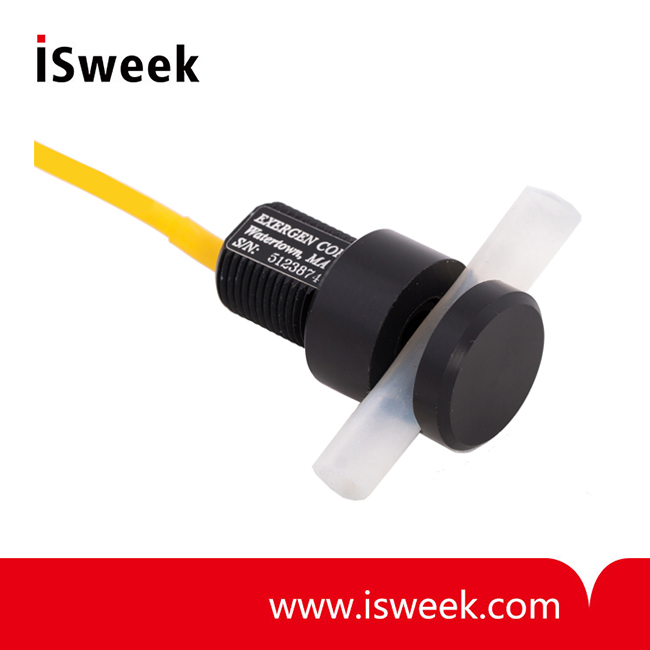

Infrared Temperature Sensors - IRt/c.01HB

• Sensing Range​: -50 to 550°F (-45 to 290°C)​
• Ambient Temperature: 0 to 160°F (-18 to 70°C)​
• Field of View​: approximately 1:1 (60°)​
• Repeatability 0.02° F (0.01°C)
• Interchangeability ±1%
• Resolution approx. 0.0001°C
• Minimum Spot Size​: .3" (8mm)​
• Spectral Response​: 6.5 to 14µm​
• Output Impedance​: 3 Kohms approx​
• Response Time​: 100 Milliseconds​

  • Model Number: IRt/c.01HB
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Infrared Temperature Sensors
  • Infrared Temperature Sensors
Mouse over image to zoom

Product Specification

IRt/c.01HB Infrared Temperature Sensors Features:
• Infrared Thermocouple IRt/c
• Non-contact
• Self-powered
• Intrinsically Safe
• Repeatability 0.02° F (0.01°C)
• Interchangeability ±1%
• Resolution approx. 0.0001°C
• Small Size

IRt/c.01HB Infrared Temperature Sensors Technical Data

Sensing Range
-50 to 550°F (-45 to 290°C)
Ambient Temperature Range
0 to 160°F (-18 to 70°C)
Optimum Range Selection
32 to 122°F (0 to 50°C) (Human body range)
Field of View
approximately 1:1 (60°)
Minimum Spot Size
.3" (8mm)
Spectral Response
6.5 to 14µm
Tubing Size Range
0.3 to 1.0" (8 to 25mm) O.D.
Output Impedance
3 Kohms approx
Response Time
100 Milliseconds
Dimensions
2.0" x 1.0" Dia. (51 x 25mm)
Housing
Hight strength ABS, hermetically sealed, exceeds NEMA 4,4X;
IP65, 67, intrinsically safe
Cable
Thermocouple extension grade, PVC jacket, unschielded
Weight
1.4oz. (40 grams) with cable
