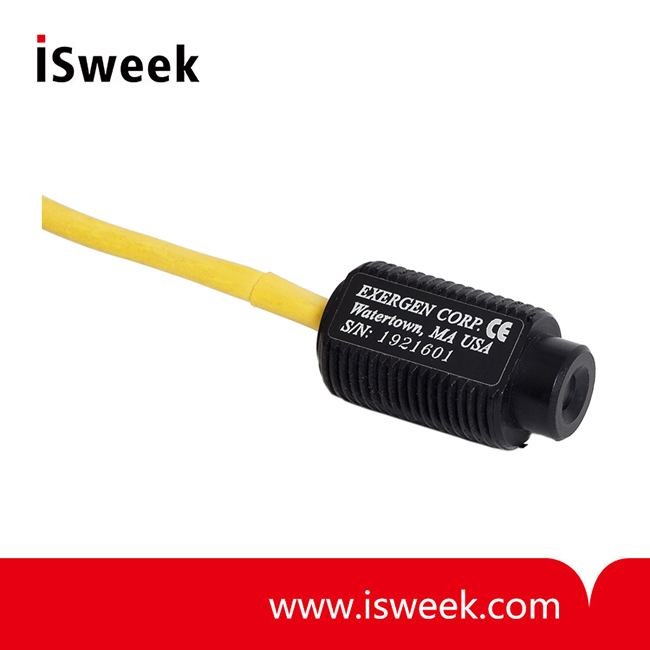

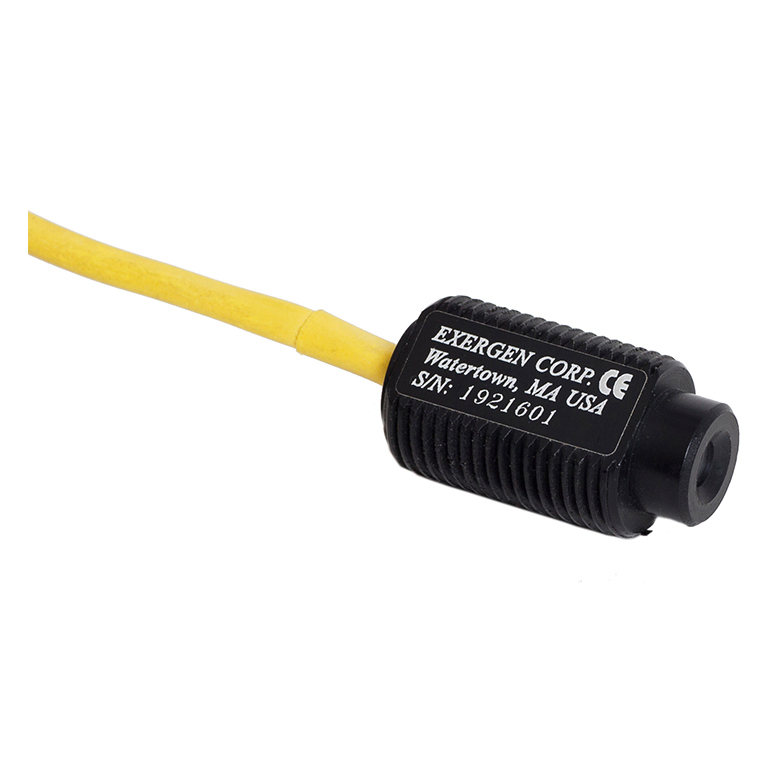

Infrared Temperature Sensors - IRt/c.03

• Sensing Range​: -50 to 550°F (-45 to 290°C)​
• Ambient Temperature Range​: 0 to 160°F (-18 to 70°C)​
• Repeatability 0.02°F (0.01°C)
• Interchangeability ±1%
• Resolution approx. 0.0001°C
• Field of View​: approximately 3:1 (17°)​
• Minimum Spot Size​: .25" (6mm)​
• Spectral Response​: 6.5 to 14µm​
• Output Impedance​: 4 to 8 Kohms approx​
• Response Time​: 100 Milliseconds​

  • Model Number: IRt/c.03
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Infrared Temperature Sensors
  • Infrared Temperature Sensors
Mouse over image to zoom

Product Specification

IRt/c.03 Infrared Temperature Sensors Features:
• Infrared Thermocouple IRt/c
• Non-contact
• Self-powered
• Intrinsically Safe
• Repeatability 0.02°F (0.01°C)
• Interchangeability ±1%
• Resolution approx. 0.0001°C
• Small Size

IRt/c.03 Infrared Temperature Sensors Technical Data

Sensing Range
-50 to 550°F (-45 to 290°C)
Ambient Temperature Range
0 to 160°F (-18 to 70°C)
Optimum Range Selections
Eight models per t/c type (see Temperature Selection Chart)
Field of View
approximately 3:1 (17°)
Minimum Spot Size
.25" (6mm)
Spectral Response
6.5 to 14µm
Output Impedance
4 to 8 Kohms approx
Response Time
100 Milliseconds
Dimensions
1.28" x .71" Dia. (32.5 x 20mm)
Housing
High strength ABS, hermetically sealed, exceeds NEMA 4,4X;
IP65, 67, intrinsically safe. Two locknuts supplied
Cable
Thermocouple extension grade, PVC jacket, unshielded
Weight
1.4oz. (40 grams) with cable
