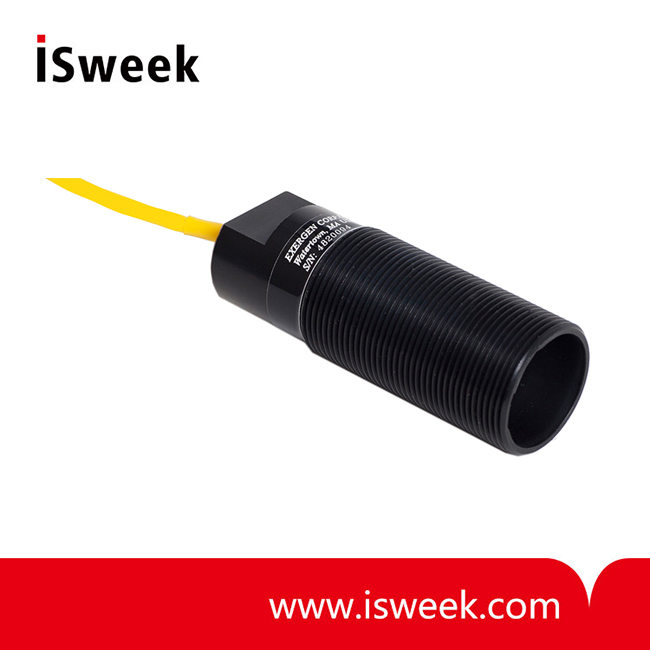

Infrared Temperature Sensors - IRt/c.07

• Sensing Range: -50 to 550°F (-45 to 290°C)
• Ambient Temperature: -4 to 158°​F (-20 to 70°C)
• Field of View: approximately 7:1 (8°)
• Repeatability 0.02°F (0.01°C)
• Interchangeability ±1%
• Resolution approx. 0.0001°C
• Minimum Spot Size: .75" (19mm)
• Spectral Response: 6.5 to 14µm
• Output Impedance: 3.5 to 14 Kohms approx
• Response Time: 100 Milliseconds

  • Model Number: IRt/c.07
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Infrared Temperature Sensors
  • Infrared Temperature Sensors
Mouse over image to zoom

Product Specification

IRt/c.07 Infrared Temperature Sensors Features:
• Infrared Thermocouple IRt/c
• Non-contact
• Self-powered
• Intrinsically Safe
• Repeatability 0.02°F (0.01°C)
• Interchangeability ±1%
• Resolution approx. 0.0001°C
• Small Size

IRt/c.07 Infrared Temperature Sensors Technical Data

Sensing Range
-50 to 550°F (-45 to 290°C)
Ambient Temperature Range
-4 to 158°F (-20 to 70°C)
Optimum Range Selections
Eight models per t/c type (see Temperature Selection Chart)
Field of View
approximately 7:1 (8°)
Minimum Spot Size
.75" (19mm)
Spectral Response
6.5 to 14µm
Output Impedance
3.5 to 14 Kohms approx
Response Time
100 Milliseconds
Dimensions
3.25" x 1.18" Dia. (82.5 x 29.97mm), M30 x 1.5 thread
Housing
ABS Black Plastic, hermetically, exceeds NEMA 4X; IP67
Cable
3 feet of unshielded, duplex insulted, type K, 24 AWG, PFA
jacket rated to 392°F (200°C) (Shielded cale avialable upon request)
Weight
2.3oz. (65 grams) with cable
