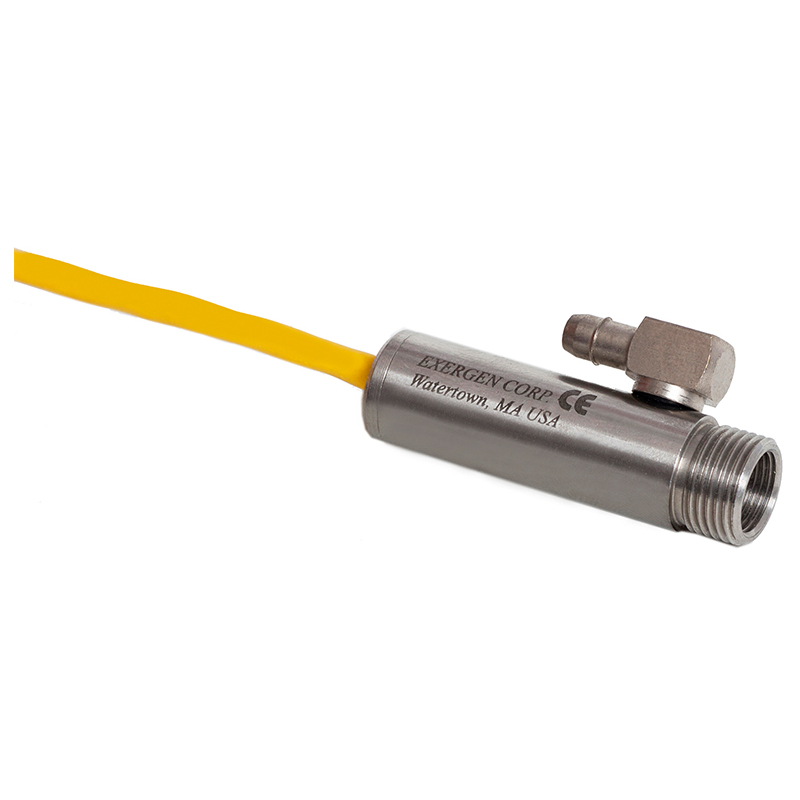

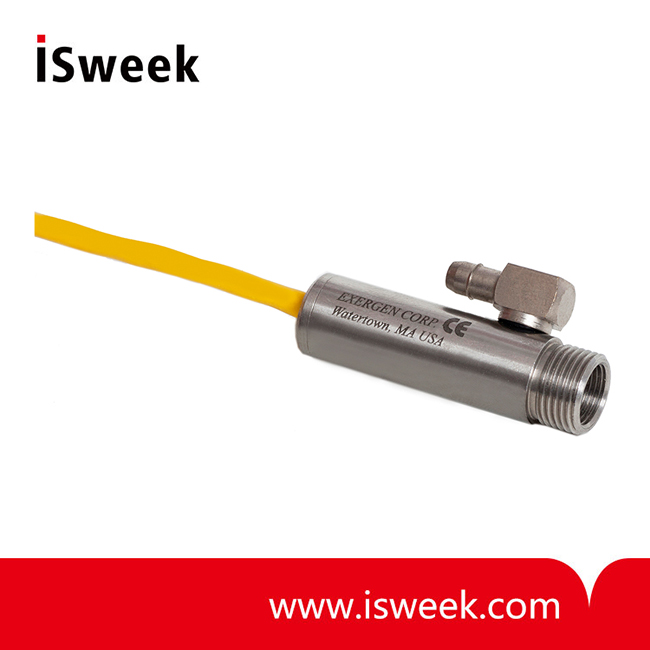

Infrared Temperature Sensors - IRt/c.3X

• Sensing Range: -50 to 1200°F (-45 to 650°C)
• Ambient Temperature: 0 to 248°F (-18 to 120°C)
• Field of View: approximately 3:1 (17°)
• Repeatability 0.02°F (0.01°C)
• Interchangeability ±1%
• Resolution approx. 0.0001°C
• Minimum Spot Size​: .25" (6mm)​
• Spectral Response​: 6.5 to 14µm​
• Output Impedance​: 4 to 8 Kohms approx​
• Response Time​: 100 Milliseconds​

  • Model Number: IRt/c.3X
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Infrared Temperature Sensors
  • Infrared Temperature Sensors
Mouse over image to zoom

Product Specification

IRt/c.3X Infrared Temperature Sensors Features:
• Infrared Thermocouple IRt/c
• Non-contact
• Self-powered
• Intrinsically Safe
• Repeatability 0.02°F (0.01°C)
• Interchangeability ±1%
• Resolution approx. 0.0001°C
• Small Size

IRt/c.3X Infrared Temperature Sensors Technical Data

Sensing Range
-50 to 1200°F (-45 to 650°C)
Ambient Temperature Range
0 to 248°F (-18 to 120°C)
Optimum Range Selections
Eight models per t/c type (see Temperature Selection Chart)
Field of View
approximately 3:1 (17°)
Minimum Spot Size
.25" (6mm)
Spectral Response
6.5 to 14µm
Output Impedance
4 to 8 Kohms approx
Response Time
100 Milliseconds
Dimensions
1.76" x .50" Dia. (44.7 x 12.7mm)
Housing
Stainless steel, hermetically sealed, exceeds NEMA 4,4X;
IP65, 67, cable shield grounded to housing and electrically
isolated from signal

Cable
Twisted shielded pair of base thermocouple material (J,K,E,T),
3ft (.9m) std lenght, Telfon sheated, reated to 392°F (200°C)
continuous service
Weight
1.4oz. (40 grams) with cable
Air Purge
Built-in; designed for severe paint or ink environment;
3' (0.9 m) of tubing provided
