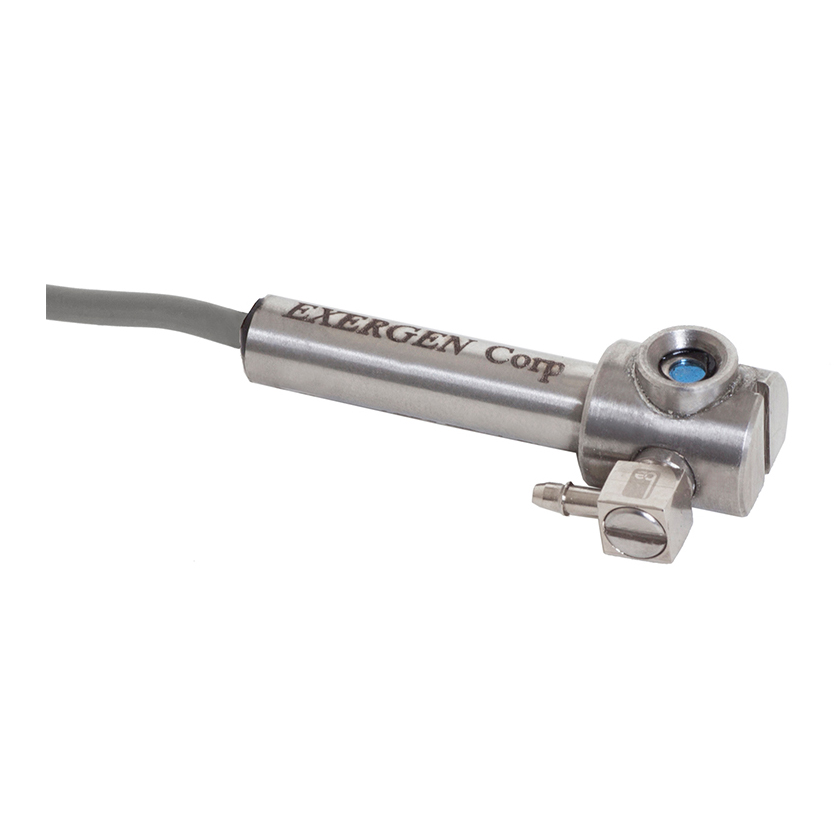

Infrared Temperature Sensors - Micro IRt/c.4SV

• Sensing Range​: -49 to 1157°F (-45 to 625°C)​
• Field of View​: approximately 4:1 (14°)​
• Repeatability 0.02°F (0.01°C)
• Interchangeability ±1%
• Resolution approx. 0.0003°C
• Minimum Spot Size​: .1" (3mm)​
• Spectral Response​: 5.5 to 20µm​
• Output Impedance​: 40 Kohms​
• Response Time​: 60 Milleseconds​

  • Model Number: Micro IRt/c.4SV
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Infrared Temperature Sensors
  • Infrared Temperature Sensors
Mouse over image to zoom

Product Specification

Micro IRt/c.4SV Infrared Temperature Sensors Features:
• Infrared Thermocouple IRt/c
• Non-contact
• Self-powered
• Intrinsically Safe
• Repeatability 0.02°F (0.01°C)
• Interchangeability ±1%
• Resolution approx. 0.0003°C
• Small Size

Micro IRt/c.4SV Infrared Temperature Sensors Technical Data

Sensing Range
-49 to 1157°F (-45 to 625°C)
Ambient Temperature Range
-4 to 212°F (-20 to 100°C) with air off
-4 to 248°F (-20 to 120°C) with air on
Optimum Range Selection
One model: 2% linear to match a Kt/c from 212-240°
(see Temperature Selection Chart).
For other temperature ranges please contact us
Field of View
approximately 4:1 (14°)
Minimum Spot Size
.1" (3mm)
Spectral Response
5.5 to 20µm
Output Impedance
40 Kohms
Response Time
60 Milleseconds
Dimensions
See diagram above
Housing
Stainless Steel, Hermetically sealed, exceeds NEMA 4X, IP67
Cable
3 feet of unsheilded, duplex insulated, type K, 24
AWG, PFA jacket rated to 500°F (260°C) (Shielded
cable available upon request)
Weight
Approximately 2oz. (60 grams) with cable
Input Device Compatibility
It is recommended to use input devices with less than 1 nA
of leakage current to minimize offsets, and sensor break
detection should be set to 40 Kohm maximum.
