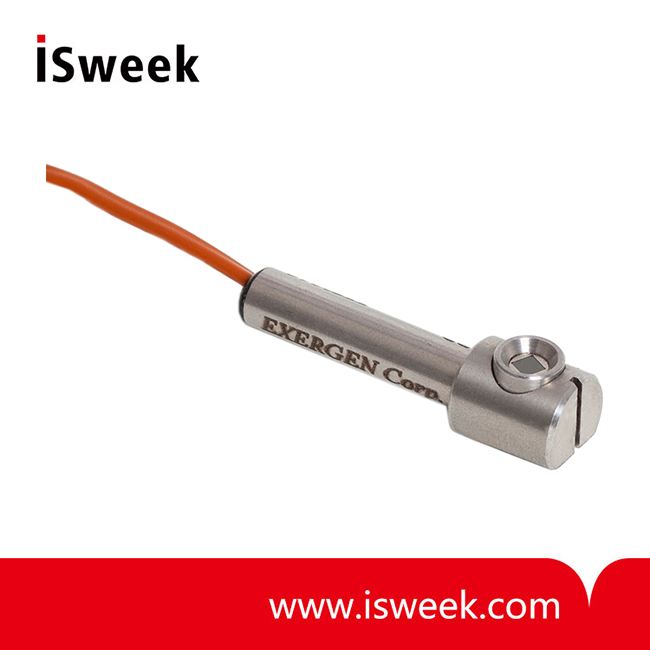

Infrared Temperature Sensors - Micro IRt/c.SV

• Sensing Range​: 0 to 975°F (-18 to 524°C)​
• Field of View​: approximately 1:2 (110°)​
• Repeatability 0.02°F (0.01°C)
• Interchangeability ±1%
• Resolution approx. 0.0003°C
• Minimum Spot Size​: .1" (3mm)​
• Spectral Response​: 5.5 to 20µm​
• Output Impedance​: 17 - 45 Kohms​
• Response Time​: 50 Milliseconds​

  • Model Number: Micro IRt/c.SV
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Infrared Temperature Sensors
  • Infrared Temperature Sensors
Mouse over image to zoom

Product Specification

Micro IRt/c.SV Infrared Temperature Sensors Features:
• Infrared Thermocouple IRt/c
• Non-contact
• Self-powered
• Intrinsically Safe
• Repeatability 0.02°F (0.01°C)
• Interchangeability ±1%
• Resolution approx. 0.0003°C
• Small Size

Micro IRt/c.SV Infrared Temperature Sensors Technical Data

Sensing Range
0 to 975°F (-18 to 524°C)
Ambient Temperature Range
-29 to 185°F (-20 to 85°C) permanent
-29 to 212°F (-20 to 100°C) non permanent
Optimum Range Selections
Eight models per t/c type (see Temperature selection Chart)
Field of View
approximately 1:2 (110°)
Minimum Spot Size
.1" (3mm)
Spectral Response
5.5 to 20µm
Output Impedance
17 - 45 Kohms
Response Time
50 Milliseconds
Dimensions
See diagram above
Housing
Stainless Steel, Hermetically sealed, exceeds NEMA 4X, IP67
Cable
3 feet of unsheilded, duplex insulated, type K, 24
AWG, PFA jacket rated to 500°F (260°C) (Shielded
cable available upon request)
Weight
Approximately 1oz. (30 grams) with cable
Input Device Compatibility
It is recommended to use input devices with less than 1 nA
of leakage current to minimize offsets, and sensor break
detection should be set to 45 Kohm maximum.
