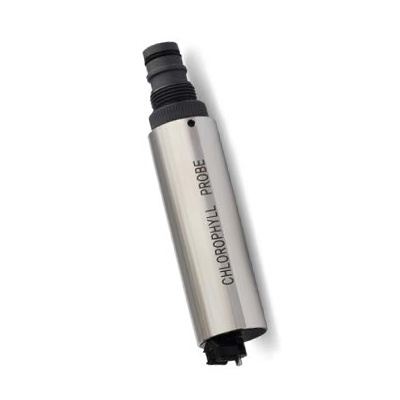

Integrated Optical Chlorophyll A Sensor - CHLOROPHYLL-200

• Measuring range: 0 ~ 500ug/L
• ​Resolution: 0.1ug/L​
• Accuracy: ±5%F.S.​
• Temperature: 0 ~ 40℃​
• Pressure: <0.1MPa​
• Power supply: 7 ~ 16VDC ±10%​
• Output signal: Rs485(Modbus/RTU)​

  • Model Number: CHLOROPHYLL-200
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Integrated Optical Chlorophyll A Sensor
  • Integrated Optical Chlorophyll A Sensor
Mouse over image to zoom

Product Specification

CHLOROPHYLL-200 integrated chlorophyll A sensor Description

This product is an integrated optical chlorophyll A transmitter, using ultraviolet absorption measurement principle, protection class IP68, can be installed directly into the formula, suitable for all occasions need to measure chlorophyll A, such as marine environmental monitoring and other industries.


CHLOROPHYLL-200 integrated chlorophyll A sensor Technical Specifications

Model
CHLOROPHYLL-200
Measuring range
0 ~ 500ug/L
Resolution
0.1ug/L
Accuracy
±5%F.S.
Temperature
0 ~ 40℃
Pressure
<0.1MPa
Power supply
7 ~ 16VDC ±10%
Output signal
Rs485(Modbus/RTU)
Wetted Material
SS316L
Installation
Input type
