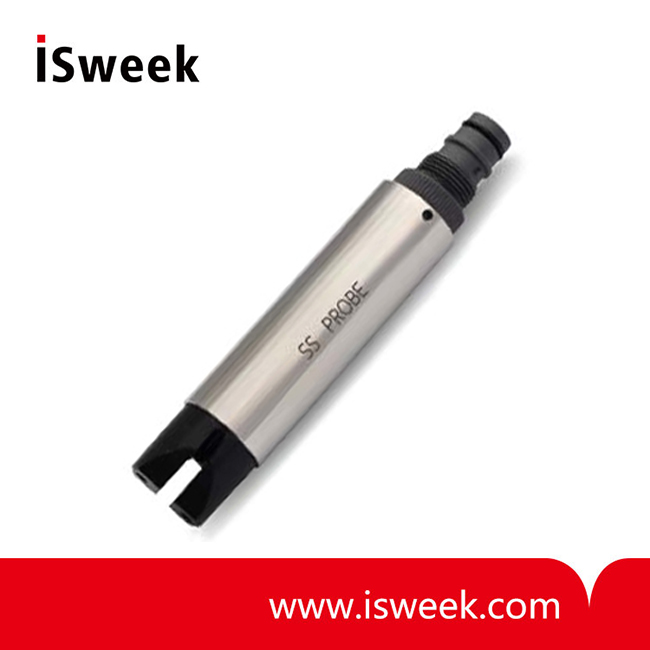

Integrated Optics Sludge Concentration Sensor - MLSS-720

• Measuring range: 0.01 ~ 15g/L
• Resolution: 0.01g/L
• Accuracy: <10g/L: ±1%F.S.; >10g/L: ±5%F.S.
• Temperature: -10 ~ 40℃
• Pressure: <0.1MPa
• Power supply: 7 ~ 16VDC ±10%
• Output signal: Rs485(Modbus/RTU)

Model Number: MLSS-720
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

MLSS-720 Integrated Sludge Concentration Sensor Description

This product is integrated optics sludge concentration transmitter, protection class IP68, can be directly into installation, high precision, suitable for all occasions sludge concentration to be measured, such as waste water treatment, sewage treatment and other industries.

MLSS-720 Integrated Sludge Concentration Sensor Technical Specifications

Model	MLSS-720
Measuring range	0.01 ~ 15g/L
Resolution	0.01g/L
Accuracy	<10g/L: ±1%F.S. >10g/L: ±5%F.S.
Temperature	-10 ~ 40℃
Pressure	<0.1MPa
Power supply	7 ~ 16VDC ±10%
Output signal	Rs485(Modbus/RTU)
Installation	Input type
