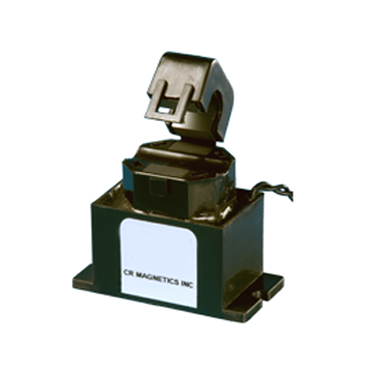

Low Cost, Self Powered, Fixed Set-point, Split Core Current Switch - CR9380

Current: AC Current
Voltage Type: AC Voltage, DC Voltage
Normally Open or Closed: Normally Open
Output: ACA Output, NPN Output, PNP Output
Power: Self-Powered
Split Core: Split Core

  • Model Number: CR9380
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Low Cost, Self Powered, Fixed Set-point, Split Core Current Switch
Mouse over image to zoom

Product Specification

The CR9380 Series is a low cost, self-powered, fixed set-point Split Core Current Switch designed for applications that require an on-off indication of current flow. Current levels above the guaranteed full-on level will turn the output to full on. The Current Switch is recommended only for applications where the continuous operating current is above the rated full on level of 350 mA. Operation below this point will not drive the output device full-on and derate the output ratings. The unit is available with a NPN or PNP output transistor for switching DC and a ACA output for AC switching. Connections can be made directly to items such as a PLC or electromechanical relay. Note that connections made directly to an inductive device such as an electromechanical relay will require a customer supplied clamping diode for DC operation or a snubber network for AC operation.

CR9380 Split Core Current Switch Features
• Economically Priced
• Low fixed trip point
• Fully isolated
• Reverse output polarity protected
• Self-powered
• Panel mounting case (optional)

CR9380 Split Core Current Switch Specifications
• Rated Full-on: 0.350 AAC RMS
• Turn-on Time: 100 ms. max. @ rated full-on
• Turn-off Time: 250 ms. max. to 80% of Vce
• Maximum sense current:
  Continuous: 100 AAC
  1 Second: 500 AAC
  *All specifications for operation at 60 Hz only

CR9380 Split Core Current Switch Applications
• Continuity
• Proving Switch

CR9380 Split Core Current Switch PART NUMBER
