Magnet Carrier for use with Angle Position Sensors - AS500106

• Vibration: 15g sinusoidal, 9.26g RMS axial; 40Hz - 2kHz all 3 axes
• Operation Temperature: -40 to 125 °C (-40 to 257 °F)
• Magnet carrier for use with Angle Position Sensors
• Magnet carrier for Cherry AN8 and AN9 sensors
• PPS housing
• Samarium Cobalt 28 magnet
• RoHS compliant

  • Model Number: AS500106
  • Data Sheet: Date Sheet File
Quantity:
- +

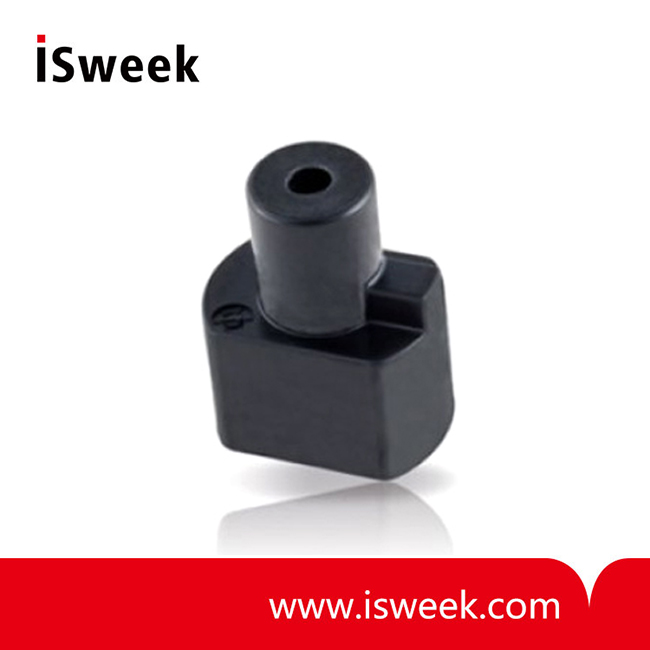

  • Magnet Carrier for use with Angle Position Sensors

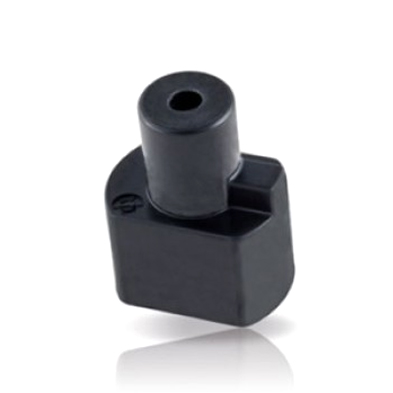

  • Magnet Carrier for use with Angle Position Sensors
Mouse over image to zoom

Product Specification

AS500106
Magnet carrier for use with Angle Position Sensors

AS500106 Magnet Carrier Features
• Magnet carrier for Cherry AN8 and AN9 sensors
• PPS housing
• Samarium Cobalt 28 magnet
• RoHS compliant

AS500106 Magnet Carrier Environmental Specifications

Vibration
15g sinusoidal, 9.26g RMS axial; 40 Hz - 2 kHz all 3 axes
Operation Temperature
-40 °C to 125 °C (-40 °F to 257 °F)
Storage Temperature
-40 °C to 150 °C (-40 °F to 302 °F)
Salt Spray
SAEJ1455, Section 4.3.3
Immersion
Tested per SAE J 1455, Section 4.4.1: Engine oil and additives,
Transmission oils, Water, Power steering fluid, Brake fluids, Washer
solvent, Gasoline, Diesel fuel, Alcohol, Antifreeze water mixture, Battery
acid, Salt water, Kerosene, Ammonia

AS500106 Magnet Carrier Mechanical Specifications
Recommended Fastener
M4 Cap Screw
Recommended Torque
3 Nm (26.5 in lbs)

Products
Part Number
Description
Sensing Range
AS500106
Magnet only
N/A
CU103601
Kit with AN820001 sensor
180°
CU103602
Kit with AN820002 sensor
360°
CU103603
Kit with AN820003 sensor
45°
