Medical Respiratory Sensor - FS6122B

• Flow Range: -250 ~ +250 SLPM
• Accuracy: ±(2.5+0.5FS)%
• Output: Linear, Analog/I2C
• Response Time: 5ms
• Fast response time
• Highly sensitive in small flow rate
• Low power consumption
• Specially designed for medical equipment

  • Model Number: FS6122B
  • Data Sheet: Date Sheet File
Quantity:
- +

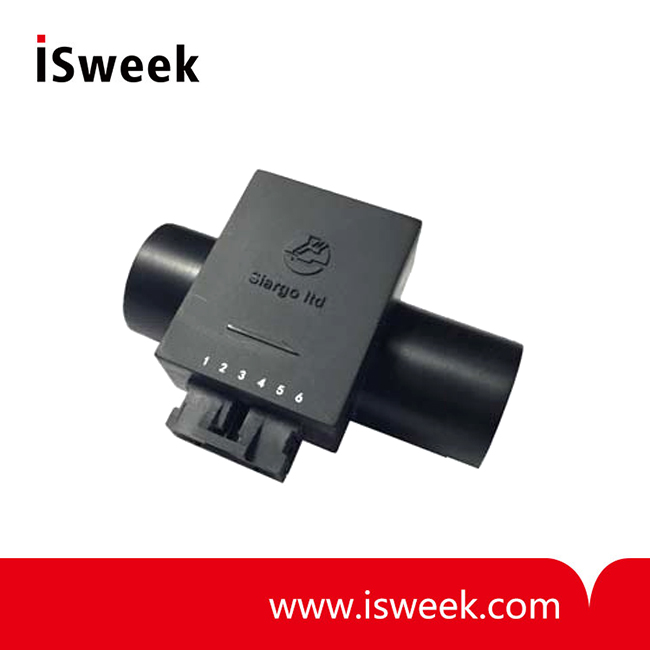

  • Medical Respiratory Sensor

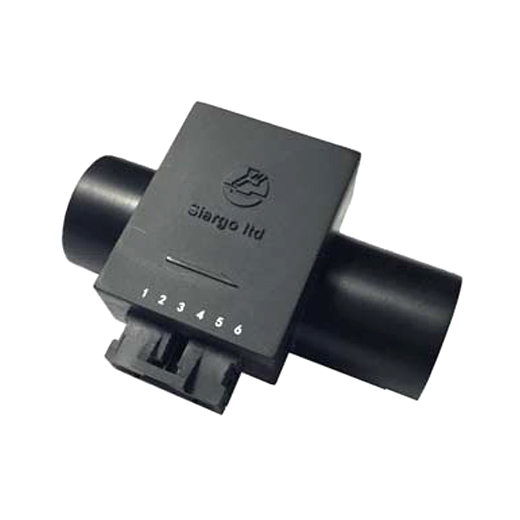

  • Medical Respiratory Sensor
Mouse over image to zoom

Product Specification

FS6122B Medical Respiratory Sensor Description
FS6122 series mass flow sensors are specially designed for personal ventilators for CPAP (continuous positive airway pressure). The sensor integrates MEMS mass flow sensor with a MEMS pressure the necessary information for the poper performance of the state-of-art CPAP ventilators. The miniature package not only provide space saving for the ventilator but also provides high accuracy and fast response for both mass flowrate measurement and gauge pressure data while with a very low pressure drop and small dead space.

FS6122B Medical Respiratory Sensor Features
- Measures mass flow rate and gauge pressure
- Fast response time
- Highly sensitive in small flow rate
- Low power consumption
- Specially designed for medical equipment

FS6122B Medical Respiratory Sensor Mechanical Dimensions


FS6122B Medical Respiratory Sensor Performance

All data unless otherwise noted apply for calibration conditions: air, 20°C, 101.325kPa absolute pressure, horizontal mounting.
