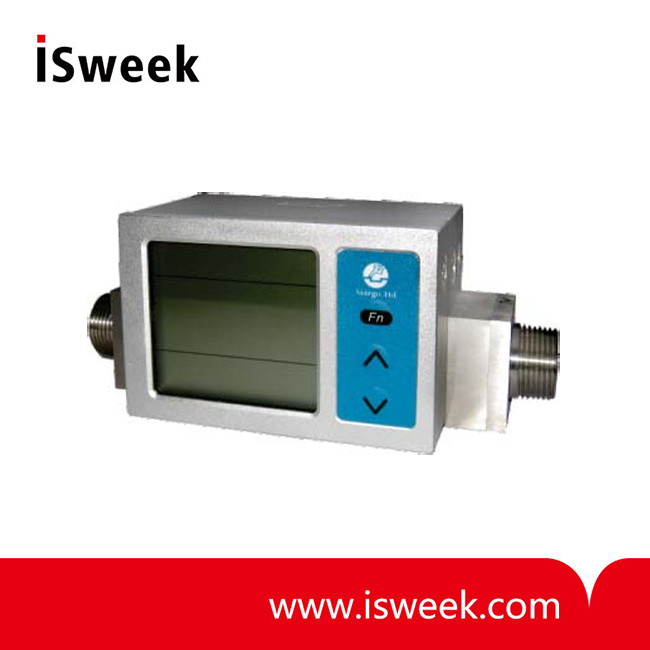

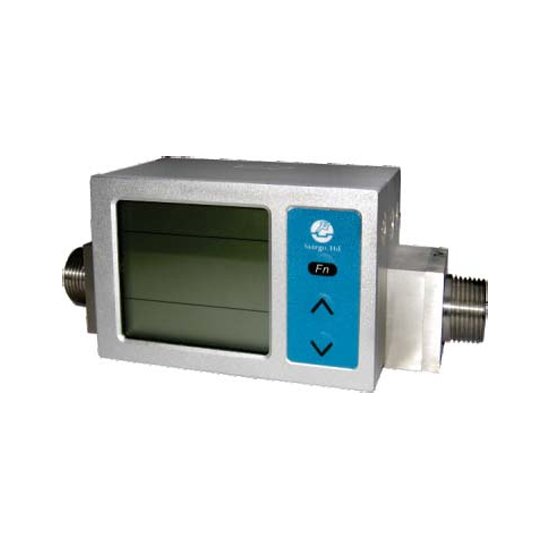

MF5600 Series Detachable Display Gas Flow Meters - MF5612/MF5619
• Flow Range:
- MF5612: 0.3 ~ 200, 300 SLPM
- MF5619: 0.8 ~ 600, 800 SLPM
• Turn-down Ratio: 30:1
• Accuracy: ±(1.5+0.5 FS)%
• Repeatability: ±0.5%
• Max. Pressure: 1.0 MPa
• Operating Tenperature: -10 ~ +55℃
• Output: 4~20 mA; RS485; Pules
- Model Number: MF5612/MF5619
- Data Sheet:
- Quantity:
- - +
Product Specification
MF5600 Series Detachable Display Gas Flow Meters General description
MF5600 series mass flow meters are specially designed for applications where the display isoften required to be placed separated away from the flow channel or meter body, such as theoxygen metering system in a hospital. These meters are opted with the standard industrialuser interfaces (RS485 and 4 ~ 20mA), and user defined alarm functions for better monitoringor control over the network. The off-the-shelf products (MF5612 and MF5619) are for gasflow measurement of 0 ~ 300 SLPM and 0 ~ 800 SLPM, respectively.
MF5600 Series Detachable Display Gas Flow Meters Features and Applications

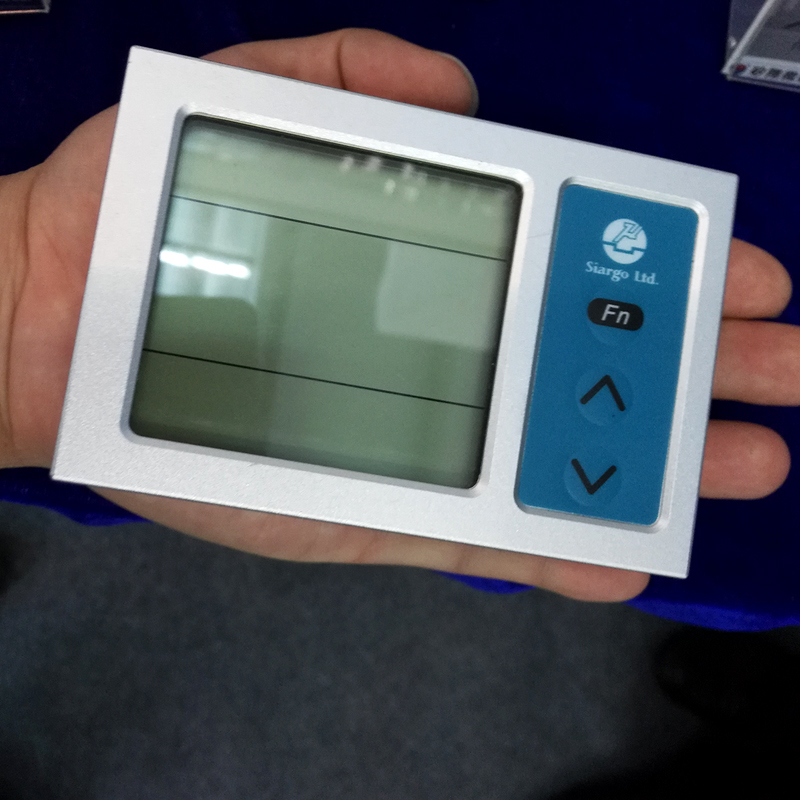

- Detachable display that can be placed away from the flow channel via a specially designed cable
- Standard 4 ~ 20 mA or RS485 for remote data communication
- Hygienic stainless steel body ready for oxygen metering
- Extended rangeability for accurate flow monitoring and control
- Intrinsic safe enclosure
MF5600 Series Detachable Display Gas Flow Meters Mechanical Dimensions
MF5600 Series Detachable Display Gas Flow Meters Specifications
MF5600 Series Detachable Display Gas Flow Meters Production selection
