Miniature Pressure Transducer - PSG 110

• Pressure Ranges: 150 psi to 15,000 psi
• Repeatability: 150 psi to 15,000 psi - ±0.1% F.S.
• Material: 17-4 PH Stainless
• Temperature Range: 60˚ to 160˚F
• High Frequency
• Flush Diaphragm
• Small Size and Rugged

Model Number: PSG 110
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

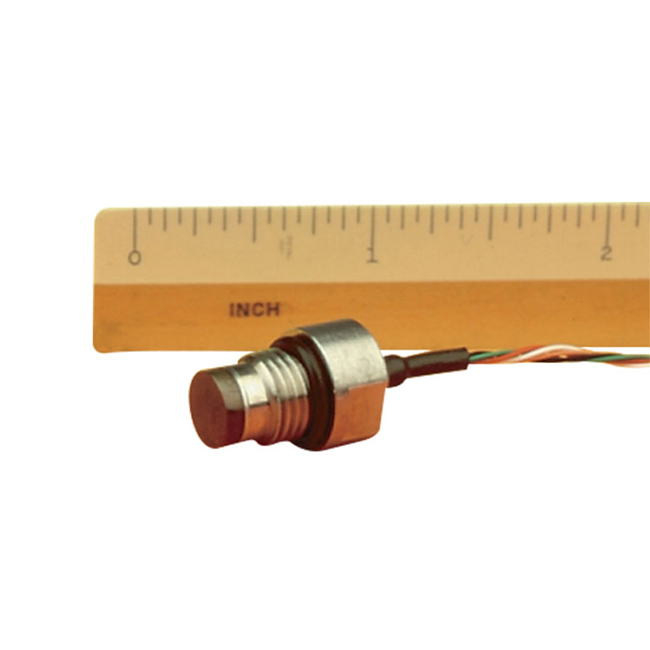

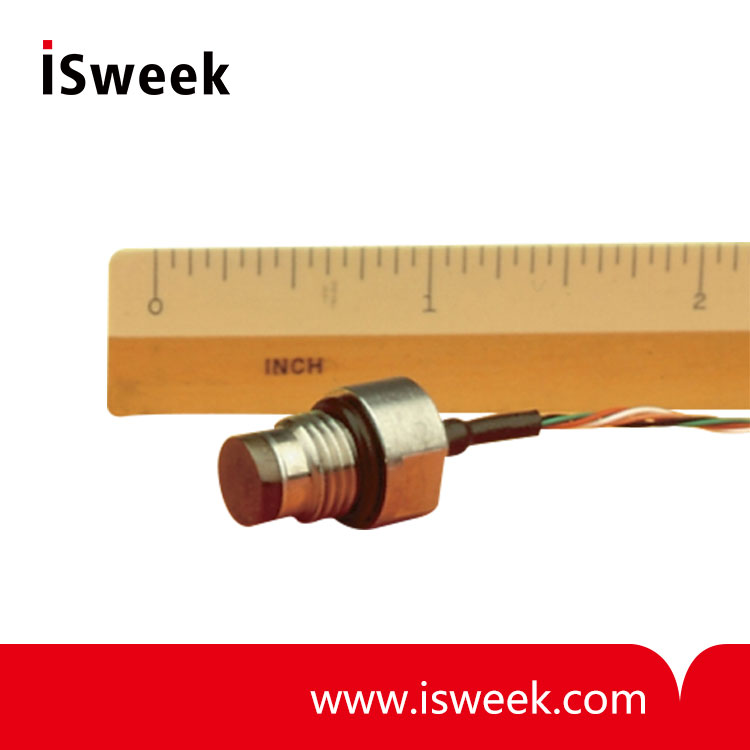

PSG 110 - Miniature Pressure Transducer

This subminiature pressure transducer is designed to accurately measure pressure ranges from 15 psi to 20,000 psi. Manufactured with a stainless steel diaphragm, the one piece design allows for a thin diaphragm but heavy sidewalls. This enables the transducer to be used in rugged environments while still being able to measure in low ranges. These transducers have a small electrical zero balance circuit board which is in the lead wire (approx. 1" x .087" thick).

PSG 110 Miniature Pressure Transducer Feature
• High Frequency
• Flush Diaphragm
• Small Size and Rugged
• 150 to 20,000 psi

PSG 110 Miniature Pressure Transducer Specifications

Pressure Ranges	150 psi to 15,000 psi
Linear/Hysteresis	150 psi to 15,000 psi - 1.0% F.S.
Repeatability	150 psi to 15,000 psi - ±0.1% F.S.
Material	17-4 PH Stainless
Temperature Range	60˚ to 160˚F
Output	150 psi to 20,000 psi - 2 mv/v
Bridge Rresistance	350 ohm
Excitation	5 Vdc
Safe Overload	50% Over Capacity
Cable	4 Twisted Leads - 5 Ft

AVAILABLE RANGES		T Thread	A" Dia	D" Dia	B"	G"	Dia
PSG 110	150; 200; 300 psi	3/8-24UNF	.310	.50	.45	.69	Welded
	500; 750; 1000; 1500; 2000; 3000 psi	3/8-24UNF	.310	.50	.45	.69	Welded
	5000; 7500; 10,000; 15,000 psi	3/8-24UNF	.310	.50	.45	.69	Welded
PSG 111	150 - 15,000 psi	7/16-24NF	.375	.56	.50	.75	Welded
*Stocked ranges are in bold type. The 3/8-24 Threaded Transducer is stocked only. 7/16-20UNF available on all models
