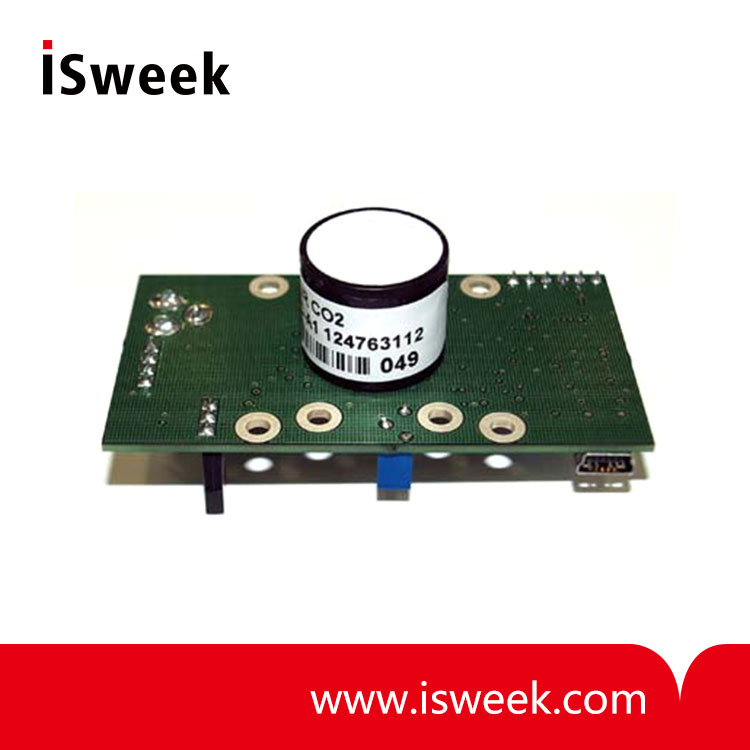

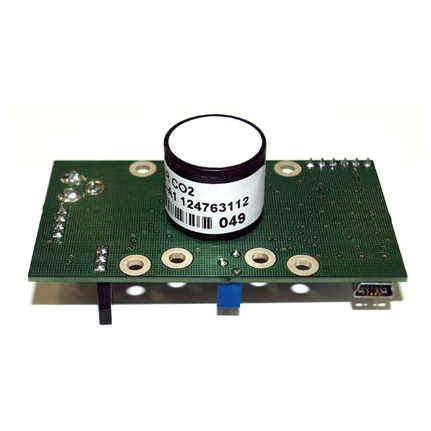

NDIR Carbon Dioxide (CO2) Transmitter Board - IRC-TX

• Both 4-20mA and USB output
• Uses Alphasense IRC-A1 NDIR cell
• Adjustable bulb voltage to optimise long-term stability vs. resolution​

  • Model Number: IRC-TX
  • Data Sheet: Date Sheet File
Quantity:
- +
  • NDIR Carbon Dioxide (CO2) Transmitter Board
  • NDIR Carbon Dioxide (CO2) Transmitter Board
Mouse over image to zoom

Product Specification

IRC-TX NDIR CO2 Transmitter Board Features
• Both 4-20mA and USB output
• Uses Alphasense IRC-A1 NDIR cell
• Adjustable bulb voltage to optimise long-term stability vs. resolution


IRC-TX NDIR CO2 Transmitter Board Specifications

Four ranges
0-5,000ppm
0-5% vol CO2
0-20% vol CO2
0-100% vol CO2
Please specify required range when ordering


Excellent linearity/accuracy
±50ppm from 5,000ppm at 20℃ using generic linearisation
Full sensor specification
see IRC-A1 data sheet


USB interface
plugs directly into PC for simple data capture
4-20mA output
4-wire or 2-wire and separate power supply (2.1mm DC socket)


Power options
USB port (4-20mA output switched off)
2.1mm DC socket 7 to 40VDC
Molex connector 7 to 40VDC
