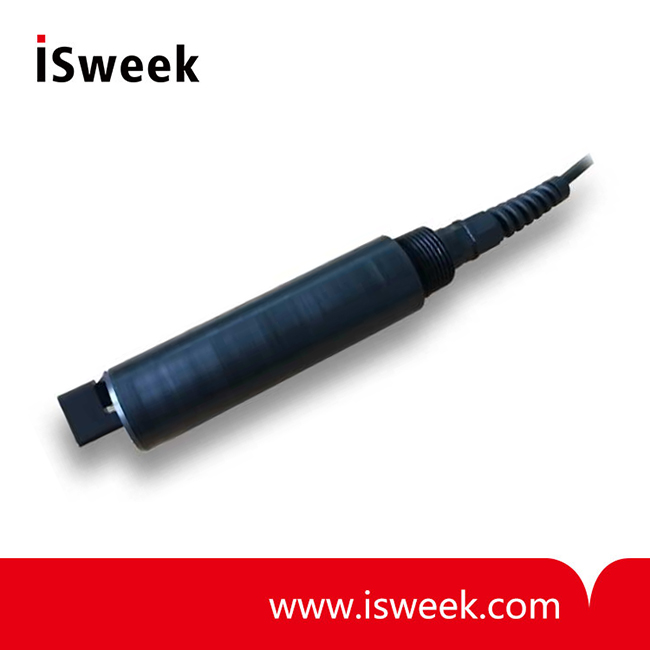

Online Self-cleaning Turbidity Sensor - Y511-A

• Range: 0.1~1000 NTU
• Housing IP Rating: IP68
• Deepest Depth: 10m underwater
• Accuracy: <5% or 0.3NTU
• Temperature Range: 0 ~ 50℃
• Power Requirements: DC 5~12V, current <50mA
• Interface: Support RS-485, MODBUS protocols

Model Number: Y511-A
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Y511-A Turbidity Sensor Description
Automatic cleaning turbidity sensor is complied with ISO 7027 Turbidity Standard. The turbidity sensor can be deployed in-situ and provide very stable data over long period of usage, which helps to ensure the quality of your measurements.

Y511-A Turbidity Sensor Typical Applications
Water quality monitoring, waste water testing, process water and aquaculture monitoring.

Y511-A Turbidity Sensor Features
• 0.1~1000 NTU
• Accuracy <5% or 0.3 NTU
• 0~50 ℃; IP68 rating, 10m underwater
• 90°Angle of scattered light principle
• Temperature sensor built-in
• RS-485; MODBUS protocol compatible
• Convenient, fast, stable, easy to maintain
• With automatic cleaning wiper, effectively eliminate the bubbles, reducing contamination without interference by the light interference from the outside world

Y511-A Turbidity Sensor Technical Parameters

Range	0.1~1000 NTU
Housing IP Rating	IP68
Deepest Depth	10m underwater
Accuracy	<5% or 0.3NTU
Temperature Range	0 ~ 50℃
Interface	Support RS-485, MODBUS protocols
Assembly	Immersion or circulation installation
Power Requirements	DC 5~12V, current <50mA
Sensor OD	33 mm
Sensor Length	156 mm
Cable Length	10m standard, 5m, 15m or 30m optional
Body Materials	POM
