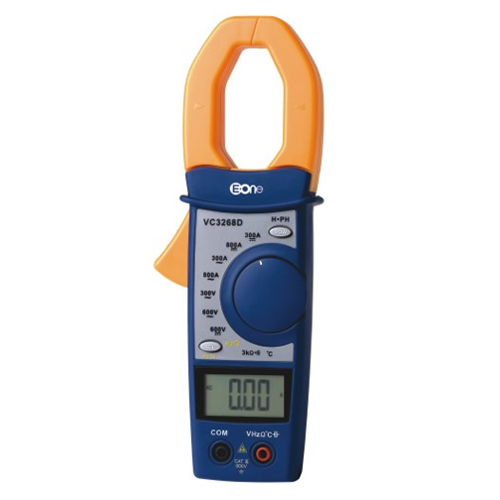

Panel Calibration AC/DC Clamp Meter - VC3268D

• Max. 45mm opening jaw
• Voltage/Current measurement
• Resistance measurement
• Frequency measurements
• 300A/800A AC/DC Current measurement
• Panel calibration with CPU equipped
• 45V-450V digital phase sequence determine and live wire verification
• Temperature measuring with the semiconductor probe
• Data hold /Max recording and REL
• Auto power-off

Model Number: VC3268D

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

VC3268D Clamp Meter General Features

VC3268D Clamp Meter Specifications

Dimension: 208x70x33mm

Weight: 280g (include batteries)

Accessories:

1 x Double plastic test lead sets, 1x Semiconductor temperature probe,

1x Phase Sequence accessory, 1x Zip oxford bag, 3x AAA batteries, 1x user’s manual

VC3268D Clamp Meter Technology Specification:

Function	Range	Resolution	Accuracy
DC Voltage	600V	1V	±(1.2%+3d)
AC Voltage	300V	100mV	±(1.2%+3d)
AC/DC Current	300A/800A	100mA/1A	±(2.0%+5d)
Resistance	3000Ω	1Ω	±(1.0%+3d)
Frequency	2kHz	1Hz	±(1.0%+5d)
Phase(Live wire verification)	45V-450V	ABC/ACB
Temperature	-10℃~+150℃	0.1℃	±(1.0%+5d)
