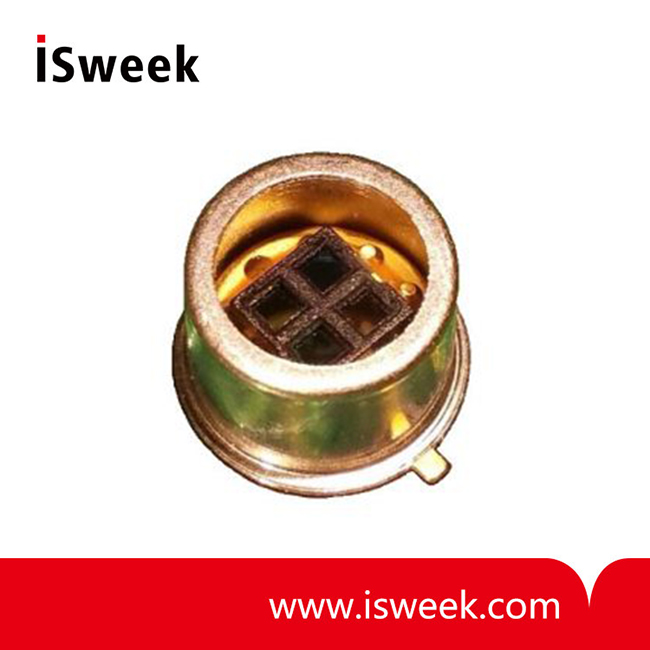

PbSe 4 Channel Infrared Detector - PbSe 4

▪ Four discrete ultra-sensitive optical channels in one package
▪ Support simultaneous measurement of multiple materials
▪ Sensitive in 1 to 5.5 um range for near and mid IR applications
▪ Compact TO-5 package maximizes potential application
▪ Hermetically sealed for use in harsh environments
▪ Available with narrow band pass (NBP) spectral filters
▪ Filters designed for CO2, CO and Hydrocarbon measurements

  • Model Number: PbSe 4
  • Data Sheet: Date Sheet File
Quantity:
- +
  • PbSe 4 Channel Infrared Detector
  • PbSe 4 Channel Infrared Detector
Mouse over image to zoom

Product Specification

PbSe 4 Channel Infrared Detector
Multi-element assembly available with two to four discreet optical channels in a single package.

PbSe 4 Channel Infrared Detector Key Features:
▪ Four discrete ultra-sensitive optical channels in one package
▪ Support simultaneous measurement of multiple materials
▪ Sensitive in 1 to 5.5 um range for near and mid IR applications
▪ Compact TO-5 package maximizes potential applications
▪ Ideal for portable instruments where size is critical
▪ Hermetically sealed for use in harsh environments
▪ Available with narrow band pass (NBP) spectral filters
▪ Filters designed for CO2, CO and Hydrocarbon measurements
▪ Available with customer specified spectral filters

PbSe 4 Channel Infrared Detector Applications:
▪ Non-dispersive Infrared (NDIR) gas measurement

PbSe 4 Channel Infrared Detector Mechanical Dimensions:



PbSe 4 Channel Infrared Detector Filter Specifications:
▪ Element 1 – HC, CWL = 3.44 +/- .03 um, Transmission > 85% at CWL
▪ Element 2 – REF, CWL = 3.84 +/- .04 um, Transmission > 85% at CWL
▪ Element 3 – CO2, CWL = 4.26 +/- .04 um, Transmission > 85% at CWL
▪ Element 4 – CO, CWL = 4.64 +/- .05 um, Transmission > 85% at CWL
