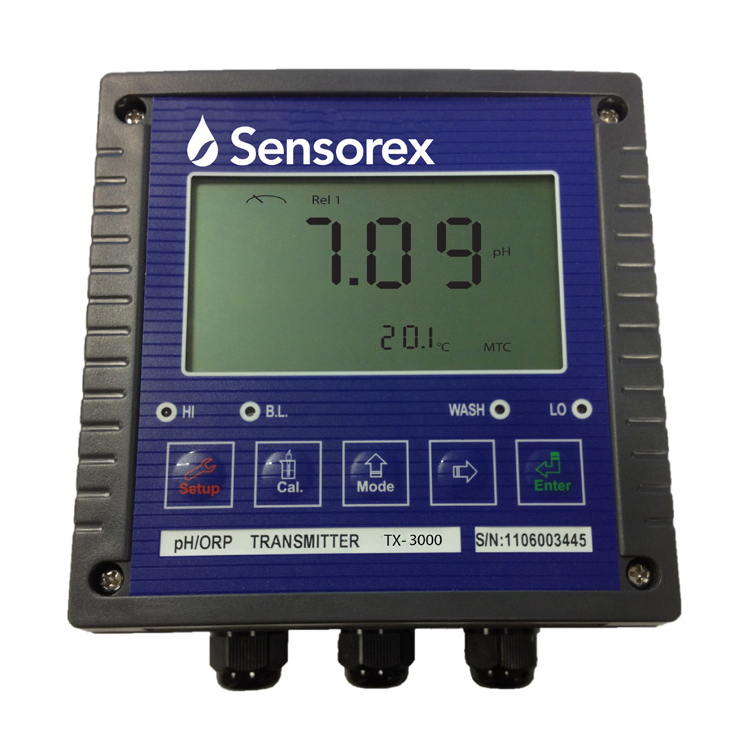

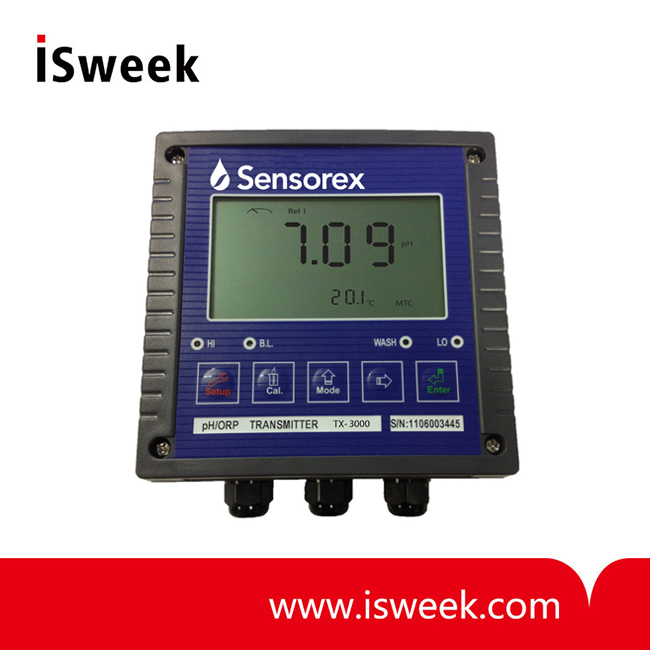

pH/mV Transmitter - TX3000

• ​Measuring Range(pH): -2.00 to 16.00 pH
• ​Measuring Range (ORP/mV): -1999mV to 1999mV
• ​Temperature Range: -30°C to 130°C
• ​Voltage Output: DC +/- 12V
• ​Ambient Temperature: 0°C to 50°C
• ​Power Requirement: 100-240V AC +/- 10%, 50/60 Hz
• ​Certification: CE

  • Model Number: TX3000
  • Data Sheet: Date Sheet File
Quantity:
- +
  • pH/mV Transmitter
  • pH/mV Transmitter
Mouse over image to zoom

Product Specification

TX3000 pH/mV Transmitter Features
• 2 each Voltage isolated (500 V) 4-20mA Outputs (pH or ORP and Temperature)
• 2 adjustable Hi/Lo relays and contacts
• Large segmented display indicates pH or mV and Temperature simultaneously
• NEMA 4X, IP65 enclosure
• Programmable wash feature


TX3000 pH/mV Transmitter Description
The TX3000 pH/mV is a full-featured pH or ORP controller. Simply power up your TX3000 with 110-240V AC power and you get a controller with a wide range of useful features: 2 relays, 1 wash control, 2 each 4-20mA outputs (pH & Temp or ORP & Temp).


Calibration is easy using any 2 Tech or NIST buffers and is can be password protected with a programmable security code.

Mounting choices include: wall, panel or pipe with all fittings included.

The large multi-segmented LCD includes a backlight so it can be easily viewed in all areas.


TX3000 pH/mV Transmitter Specifications

Measuring Range (pH)

-2.00 to 16.00 pH, 0.01 pH resolution

Measuring Range (ORP/mV)

-1999mV to 1999mV, 1mV resolution, +/- 1mV accuracy

Temperature Range

-30°C to 130°C , 0.1°C resolution, 0.2°C accuracy

Calibration Mode

AnyTech & NIST buffers up to 2 points

Analog Output 1

0/4 -20mA , corresponding to pH or ORP output. Max load 500 Ω.

Analog Output 2

0/4 -20mA , corresponding to temperature output. Max load 500 Ω

Voltage Output

DC +/- 12V

Set-Points

Contact : 240V AC, 0.5A max Activate: 2 setpoints Hi/Low, On/Off

Wash Setting

Contact : 240V AC, 30V DC 5.0A max On :0-9999 seconds /Off: 0-9999 hours

Enclosure

NEMA 4X IP65, with push-button control pad. HWD: 144 mm (5.67") x 144 mm (5.67") x 115mm (4.53")

Panel Cut-Out

138mm (5.43") x 138mm (5.43")

Weight

approx. 0.80kg (1.75lb)

Mounting Options

Panel, Wall or pipe mount

Ambient Temperature

0°C to 50°C

Storage Temperature

-20°C to 70°C

Location

Designed for non-hazardous areas

Temperature Compensation

NTC 30K or Pt1000 RTD with automatic compensation or manual

Power Requirement

100-240V AC +/- 10%, 50/60 Hz

Certification

CE


TX3000 pH/mV Transmitter Ordering Information

Model
TX3000
pH/ORP Controller requires 110-240V AC power. 2 Relays,
2 each 4-20mA outputs, Wash control and more


Accessories
B107
pH 7.00 buffer, 1 pint U.S.
B104
pH 4.01 buffer, 1 pint U.S.
B110
pH 10.00 buffer, 1 pint U.S.
B225
Zobell Solution, ORP standard 225mV+/-5%
C110
pH/ORP checker/simulator
