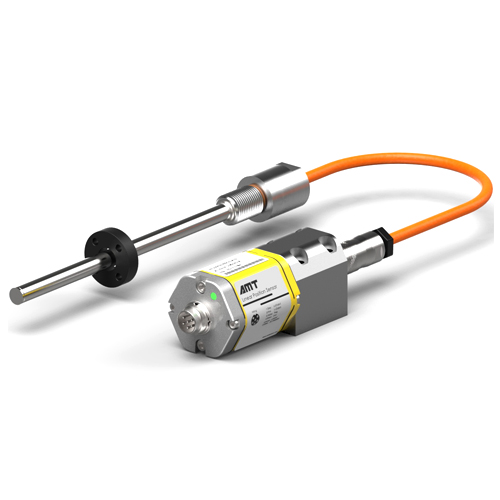

Probe Divided Linear Position Sensor - KD Series

Small installation size
Strong anti-interference ability
Wide allowable temperature range (-40℃ - +85℃)
Non-contact sensing technology
Replacement by the convenience
Intelligent diagnosis advantages

  • Model Number: KD Series
Quantity:
- +
  • Probe Divided Linear Position Sensor
Mouse over image to zoom

Product Specification

Fatures:
KD series position sensors which are compact and with spilt type, are suitable for built-in measuring occasions with strict demmands for the installation space of electronic heads. The features: small installation size, strong anti-interference ability , wide allowable temperature range (-40℃ - +85℃), non-contact sensing technology, replacement by the convenience, intelligent diagnosis advantages, etc.

The part of the electronic head that need to be installed inside the the fuel tank has a small size, which is 26.9 mm (diameter) x 32 mm (height), and it is used in some high demand areas such as the wind power, engineering machinery, high speed railway, etc.

Products Data:



Analog output

SSI output

Project name

Specifications

Specifications

Measuring range

25-2500mm

25-2500mm

Out put

 4~20mADC; 0~10VDC

 24, 25, 26bit Binary or gray yards

Resolution

16bit D/A

1/ 2/ 5/ 10/ 20/ 50 100um

Linearity

<  ±0.01%F.S. (Minimum ±50μm)

< ±0.01%F.S. (Minimum ±40μm)

Repertability

< ±0.002%F.S. (Minimum ±2μm)

< ±0.002%F.S. (Minimum ±1 reading)

Frequency response

 Range related

Range related

Input voltage

24VDC (-15/+20%)

Operating temperature

-40℃ ~ +85℃

Protection

Electronic head part: IP67, Classifier part : IP69

Thread

M6X45, M18X1.5


Outline dimensions:


Wiring & Diagnostic Display:


Status indicator:
