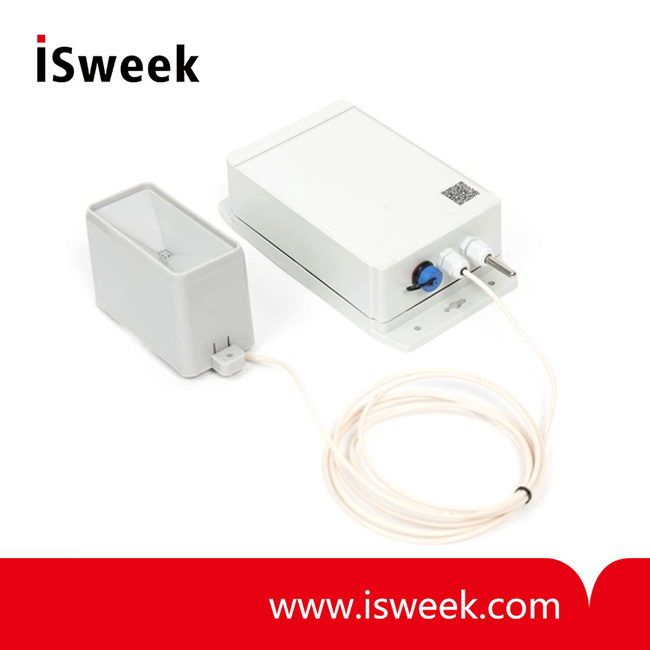

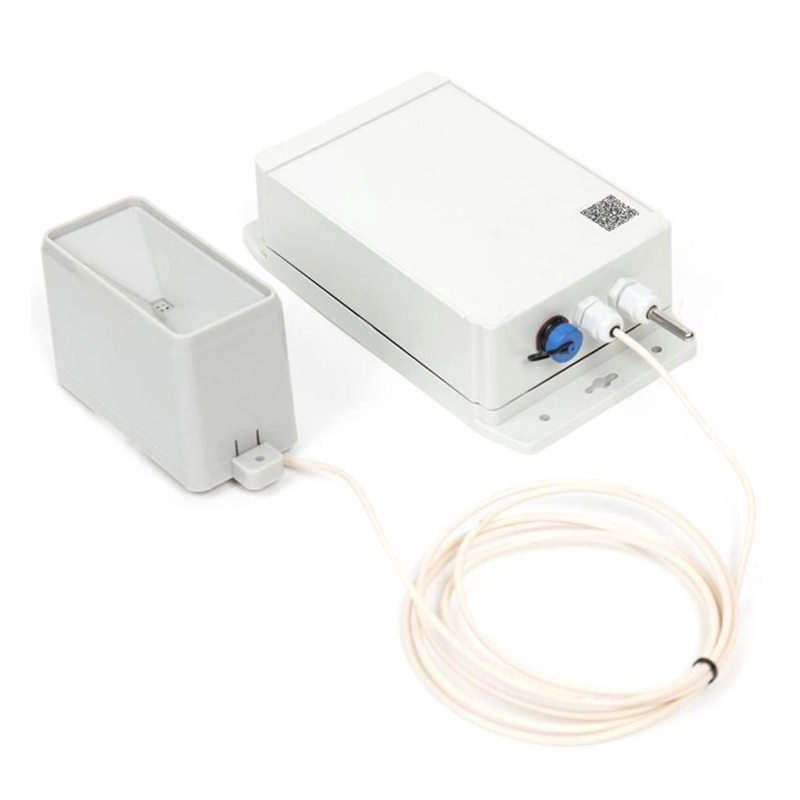

Rain Gauge Sensor - Pluviometer

Size: 180x160x90 mm
Weight: 450g
Protecction class: IP66
Accuaracy: +/- 3 l/m2
Temperature: -20ºC to 65ºC
Power supply: 2 primary lithium-thionyl chloride high power batteries

  • Model Number: Pluviometer
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Rain Gauge Sensor
  • Rain Gauge Sensor
Mouse over image to zoom

Product Specification

Pluviometer
The rain gauge sensor allows collecting real time information and analysis of rain fall data and atmospheric temperature.

Rain Gauge Sensor BENEFITS
• Continuous measurement of rainfall data
• Improved the planning of water management strategies
• Suitable for short and long term installations
• Protection class: IP66
• Promotes statistical analysis on climate change
• Rain intensity alarms
• Direct connection to SIGFOX and LoRa communications

Rain Gauge Sensor TECHNICAL DESCRIPTION

Size
180x160x90 mm
Weight
450g
Protecction class
IP66
Communication
GSM/M2M/GPRS data transmission network
Quad-band, 850/900/1800/1900 Mhz
The user must insert the SIM of the network operator
Optionally, high-performance external antenna
Accuaracy
+/- 3 l/m2
Temperature
-20ºC to 65ºC
Power supply
2 primary lithium-thionyl chloride high power batteries
Sensor description
Sensor measures the rate of precipitation by means of a weighing system,
which allows to know the water collected. It also incorporates a self-discharge system

Reports
Regular reporting of rainfall data
