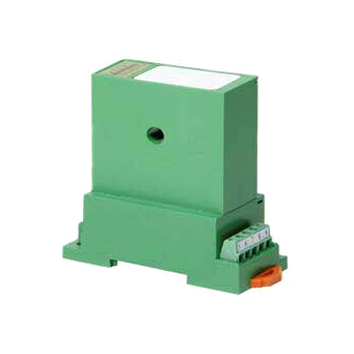

Single Phase AC Reactive Power Transducer - CR6211

Current: AC Current
Voltage Type: AC Voltage
Frequency: AC Frequency
RMS: Average RMS
Elements: Single Element
Outputs: 0-5 VDC
Power: 24 Vdc Power, AC Reactive Power
Mount: DIN Rail Mount, Panel Mount

Model Number: CR6211
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

CR6211 Reactive AC Power Transducers are designed to provide a controlled output that is proportional to the average power. These devices are specifically targeted to provide an efficient solution to most power sensing needs. Units are designed for operation in systems with sinusoidal voltage and current waveforms.

CR6211 AC Reactive Power Transducer Features
• DIN Rail or Panel Mount
• Ranges available for any power sensing need
• Active and Reactive power sensing
• 0 - 5 VDC output
• Connection diagram printed on case

CR6211 AC Reactive Power Transducer Specifications
• Insulation Voltage: 2500 VDC
• Output Load: 2K Ω or Greater
• Frequency Range: 50 - 400 Hz
• Basic Accuracy: 0.5%
• Power Source: 12 to 24 VDC
• Response Time: 250 ms
• MTBF: Greater than 100 K hours
• Thermal Drift: 500 PPM/°C
• Operating Temperature: 0°C to +60°C

CR6211 AC Reactive Power Transducer Applications
• Energy Management
• Motor Efficiency
• Multi-point power sensing
• Remote power sensing over long distances

CR6211 AC Reactive Power Transducer PART NUMBERS
