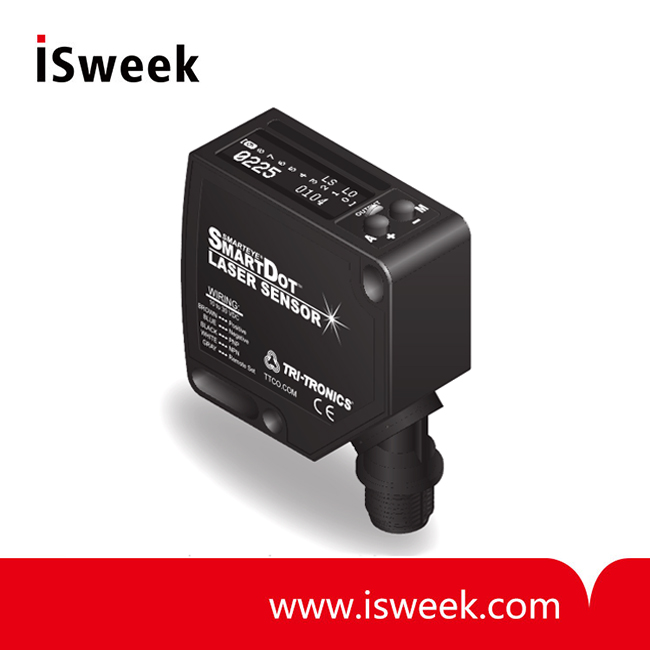

SMARTEYE SmartDot Precision Laser Sensor - SL Series

• Supply Voltage: 10 to 30 VDC
• Current Requirements: 35 milliamps max. at 24VDC
• Light state response: 240 microseconds
• Dark state response: 240 microseconds
• Laser Light Expectancy: 50,000 hours @ 25°C
• Ambient Temperature: -40°C to 70°C
• RoHS Compliant

Model Number: SL Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

SMARTEYE SmartDot Precision Laser Sensor Description
Uses a laser beam to maintain a focused visible light spot on the object or feature to be sensed. It is easily aligned, easily setup, and designed for repeatability of performance from sensor to sensor. The intuitive graphic OLED display provides all necessary information and visual confirmation of sensing stability giving the user confidence as to the long-term performance of the sensor. The consistently small laser beam is used to detect such things as a tab on a battery, a misaligned or missing bottle cap, or a cross-threaded can lid. It is useful not only in general purpose applications such as a product detector for vision systems, and simple inspection applications but also for high precision applications for small parts detection, critical identifying feature inspection, and detection of micro electronic packages.

SMARTEYE SmartDot Precision Laser Sensor Applications:
• Product Orientation
• Thread Verification Inspection
• Missing Cap Inspection
• End of Roll Sensing
• Broken Drill Bit
• Small Part Orientation Verification/Inspection

SMARTEYE SmartDot Precision Laser Sensor Specifications

SUPPLY VOLTAGE	• 10 to 30 VDC • Polarity Protected Note: For use in Class 2 circuits
CURRENT REQUIREMENTS	• 35 milliamps max. at 24VDC
OUTPUT TRANSISTORS	• (1) NPN and (1) PNP sensor output transistors • Outputs sink or source up to 150 milliamps (current limit) • All outputs are continuously short circuit protected
REMOTE AUTOSET INPUT	Selectable: Advanced Options • NPN Input, Connect to 0VDC • PNP Input, Connect to 10-30VDC
RESPONSE TIME	• Light state response = 240 microseconds • Dark state response = 240 microseconds
LASER LIGHT EXPECTANCY	• 50,000 hours @ 25°C
LIGHT SOURCE	• Red Laser: Class 1 or II • EN 60825-1 (2003)
SPOT SIZE	• Short Range: .05" X .03" @ 6" • Long Range: .07" X .05" @ 18" • Retroreflective: .1" X .1" @ 5'
PUSHBUTTON CONTROL	• Two push buttons
AMBIENT TEMPERATURE	• -40°C to 70°C (-40°F to 158°F)
RUGGED CONSTRUCTION	• Chemical resistant high impact ABS plastic housing • Waterproof rating: IP68 • Conforms to heavy industry grade CE requirements • RoHS Compliant
DIMENSIONS	• Width: 2.037in (51.73mm) • Height: 2.005in (50.9mm) • Depth: .812in (20.6mm)
FOCAL DISTANCE	• Short Range Proximity: 6" ( 152mm) • Long Range Proximity: 18"(456mm) • Retroreflective: 5' (1.520m)

SMARTEYE SmartDot Precision Laser Sensor How To Specify

1. Select Sensor:
SMARTEYE^® SmartDot^TM Laser Sensor
2. Select Output
Configuration:
V = Short Range
P = Long Range
R = Retroreflective
3. Select Cable:
Blank = 6 foot Cable (1.8m)
C = 6 inch (152mm)
M12 5-Pin Connector
