SMD Gage Pressure Sensor Module - MS5536-60C

• Pressure range 0 to 60 mbar
• 0.05 mbar Resolution
• 16 Bit ADC
• 3-wire serial interface
• Low voltage / low power
• Supply voltage 2.2V to 3.6V
• Low supply current

  • Model Number: MS5536-60C
  • Data Sheet: Date Sheet File
Quantity:
- +

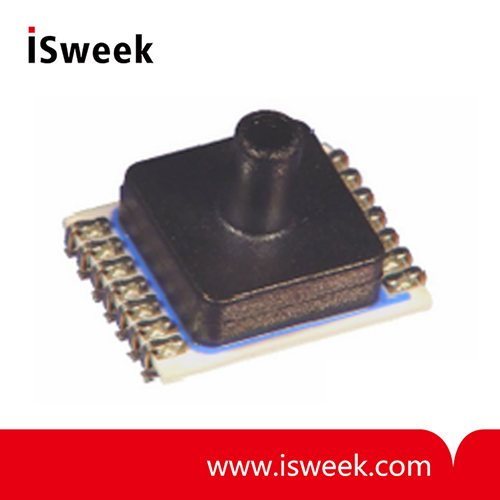

  • SMD Gage Pressure Sensor Module
  • SMD Gage Pressure Sensor Module
Mouse over image to zoom

Product Specification

MS5536-60C
SMD Gage Pressure Module

MS5536-60C SMD Gage Pressure Sensor Module Specifications
• Pressure range 0 to 60 mbar
• 0.05 mbar Resolution
• Factory Calibrated (coefficients for software compensation store on-chip)
• 16 Bit ADC
• 3-wire serial interface
• Low voltage / low power


MS5536-60C SMD Gage Pressure Sensor Module Description
MS5536-60C is a family of high-resolution factory calibrated pressure sensors. The devices include a piezoresistive pressure sensor and an ADC-Interface IC. The 3-wire serial interface ensures simple communication with any microcontroller. The devices provide digital pressure and temperature information as 16-Bit data word each. In addition 64-Bit of individually calibrated compensation coefficients are stored allowing for a highly accurate software compensation of process spread and temperature effects.

The devices have a very low standby current and automatically enter power down mode after each conversion. The optimum compromise of refresh rate and average current consumption can be defined by the application software.


MS5536-60C SMD Gage Pressure Sensor Module Features
• 16-Bit ADC resolution
• Supply voltage 2.2V to 3.6V
• Low supply current
• No external components required


MS5536-60C SMD Gage Pressure Sensor Module Applications
• Liquid level metering
• Medical application
• Air flow measurement
• HVAC application


MS5536-60C SMD Gage Pressure Sensor Module Device Package Outlines
