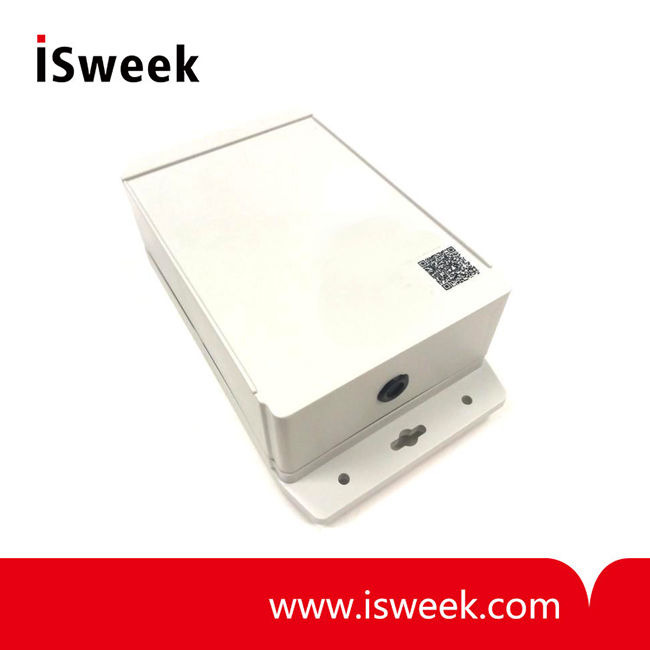

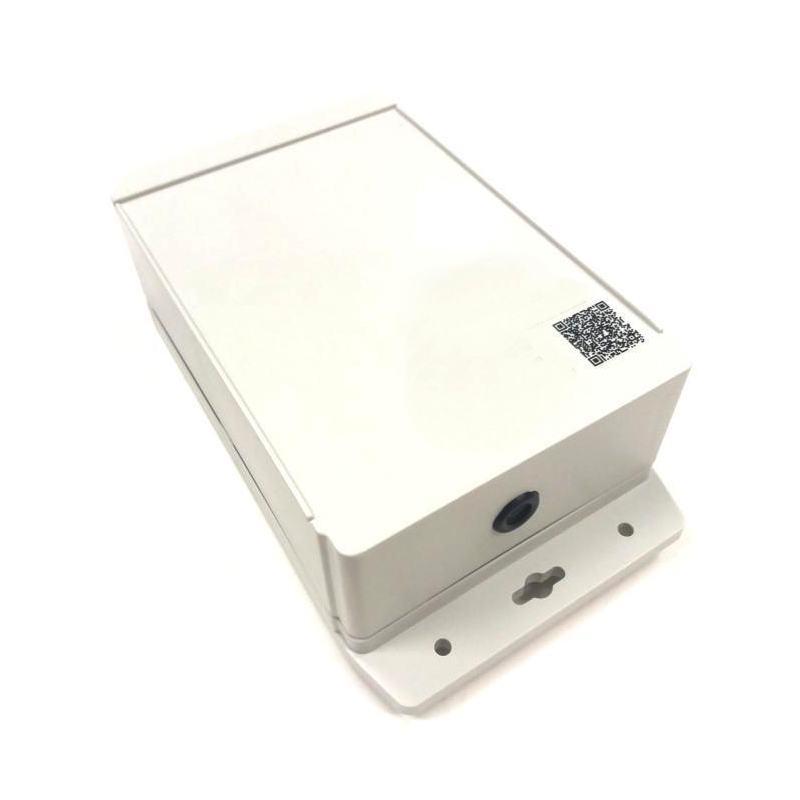

Sound and Noise Sensor - Noise Sensor
• Size: 180 x 160 x 90 mm
• Weight: 450g
• Protecrion: IP66
• Measurement Range: 20 - 100 dBA
• Accuracy: +/-5 dBA
• Temperature: -20℃ to 65℃
• Power Supply: 2 primary lithium-thionyl chloride high power batteries
• Sensor Description: Electret Microphone
- Model Number: Noise Sensor
- Data Sheet:
- Quantity:
- - +
Product Specification
Sound Sensor
Sound and noise sensor detects the intensity of ambient sound. In this way it can improve the ambient noise of any city, controlling real-time sound parameters.
Noise Sensor BENEFITS
• Identify areas of high sound intensity of 30-100 dB
• Low maintenance costs
• Continuous Measurement
• Improved sound environment management
• Indoor and outdoor application
• Direct connection to SIGFOX and LoRa communications
Noise Sensor TECHNICAL DESCRIPTION
| Size | 180 x 160 x 90 mm |
| Weight | 450g |
| Protection class | IP66 |
| Communication |
- GSM/M2M/GPRS data transmission network • Quad-band, 850/900/1800/1900 Mhz • The user must insert the SIM of the network operator • Optionally, high-performance external antenna - WiFi - LoRa - Sigfox - Zigbee - Bluetooth |
| Measurement Range | 20 - 100 dBA |
| Accuracy | +/-5 dBA |
| Temperature | -20℃ to 65℃ |
| Power Supply | 2 primary lithium-thionyl chloride high power batteries |
| Sensor Description | Electret Microphone |
| Reports | Regular reporting of sound levels and sensor data |
| Application | Level measurements as a basis for noise levels improvement |
